1
Engine displacement
1800
2
Year
2018
3
Trim
SPRINGFIELD DARK HORSE
4
Parts Catalog

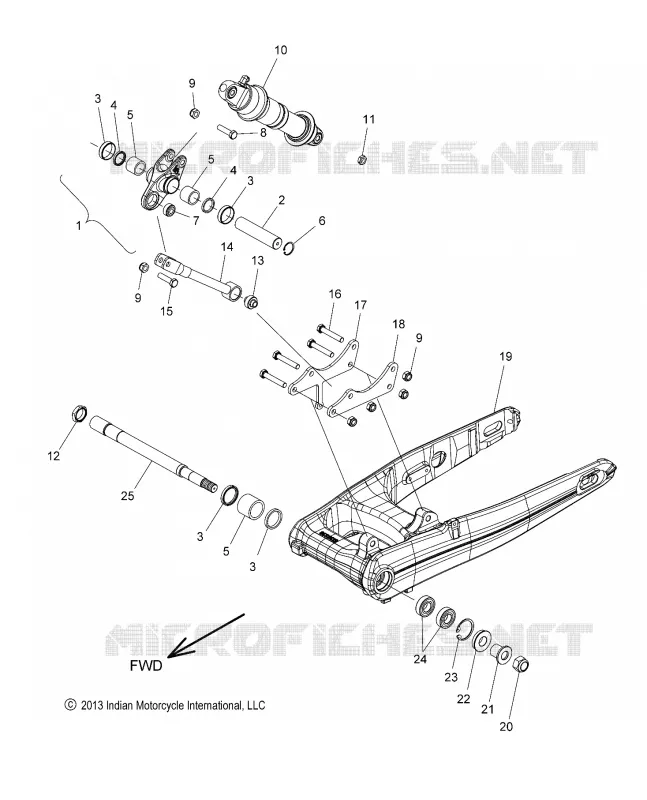

REAR SUSPENSION ASM., SWING ARM AND SHOCK
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE LINE, REAR, ABS
by
BRAKES, FRONT BRAKE CALIPERS AND REAR
REAR SUSPENSION ASM., SWING ARM AND SHOCK
1
2
3
3
3
3
4
4
5
5
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
ASM. ROCKER {INCL. 3-5 7]
1019402
£353,95 Unit Price incl. VAT
2
PIVOT ROCKER
5138483
£65,29 Unit Price incl. VAT
3
SEAL
3610096
£14,69 Unit Price incl. VAT
4
BEARING THRUST
3514836
£5,24 Unit Price incl. VAT
5
BEARING NEEDLE ROLLER
3514544
£29,38 Unit Price incl. VAT
6
RING RETAINING
7710509
£12,72 Unit Price incl. VAT
7
BEARING ROCKER
3514796
£77,56 Unit Price incl. VAT
8
SCREW
7519902
£12,72 Unit Price incl. VAT
9
NUT
7547746
£3,92 Unit Price incl. VAT
10
PISTON
*******
Not Available
11
NUT-JAM M14X1.5-Y
7547148
£6,76 Unit Price incl. VAT
12
NUT JAM
7547693
£12,72 Unit Price incl. VAT
13
BEARING SPHERICAL
3514918
£44,06 Unit Price incl. VAT
14
ASM. PUSHROD
1019378-329
Not Available
15
SCREW
7519994
£29,38 Unit Price incl. VAT
16
SCREW
7520325
£6,76 Unit Price incl. VAT
17
PLATE GUSSET SWINGARM RH
5257941
Not Available
18
PLATE GUSSET SWINGARM LH
5257205
£57,44 Unit Price incl. VAT
19
SWING ARM JT BLACK
5139825-626
£1 212,48 Unit Price incl. VAT
20
NUT NYLOK
7547685
£12,72 Unit Price incl. VAT
21
SPACER PIVOT OUTER LH
5138622
£29,38 Unit Price incl. VAT
22
SPACER PIVOT LH
5138419
£24,48 Unit Price incl. VAT
23
RING RETAINING INTERNAL
7670149
£10,14 Unit Price incl. VAT
24
BEARING BALL
3514414
£18,67 Unit Price incl. VAT
25
PIVOT SUSPENSION
5138420
£169,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
