1
Engine displacement
1800
2
Year
2018
3
Trim
springfield-dark-horse
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, BATTERY
by
BRAKES, BRAKE PEDAL

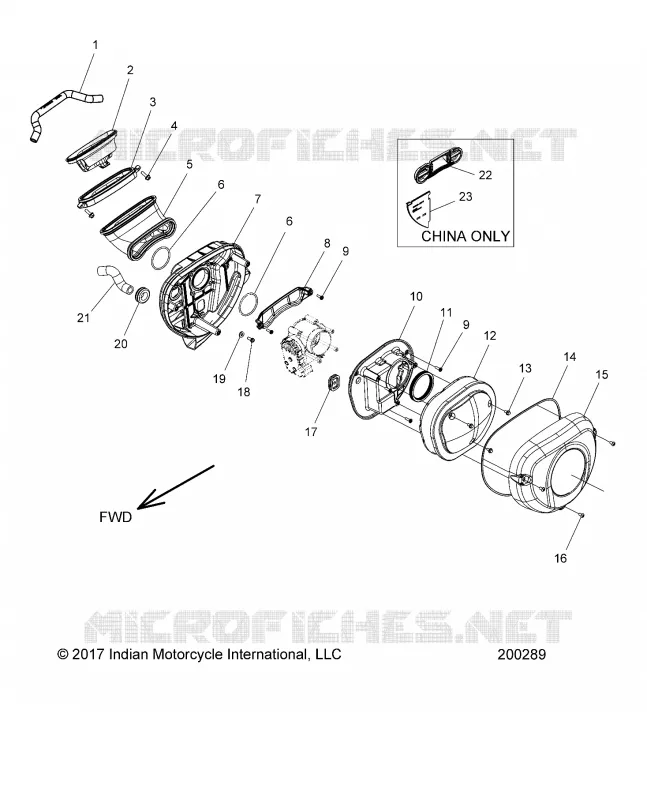

ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
HOSE BREATHER LINK
5414939
£76,56 Unit Price incl. VAT
2
INSERT AIRBOX CONNECTOR
5450308
£23,93 Unit Price incl. VAT
3
CONNECTOR AIR BOX CAST
5632801
£32,64 Unit Price incl. VAT
4
SCREW
7518141
£5,63 Unit Price incl. VAT
5
CONNECTOR AIR BOX
5414662
£59,66 Unit Price incl. VAT
6
GASKET THROTTLE BODY
5813886
£6,57 Unit Price incl. VAT
7
BASE AIRBOX
5415270
Not Available
8
RETAINER AIR BOX CONNECTOR
1204747
£32,64 Unit Price incl. VAT
9
SCREW
7518238
£5,46 Unit Price incl. VAT
10
RETAINER PLATE AIR FILTER
1204919
£104,66 Unit Price incl. VAT
11
SEAL FILTER RETAINER PLATE
5414749
£16,32 Unit Price incl. VAT
12
AIR FILTER
5813976
5815068
£32,31 Unit Price incl. VAT
13
SCREW
7517795
£5,63 Unit Price incl. VAT
14
SEAL AIR BOX
5414783
£6,57 Unit Price incl. VAT
15
COVER AIR BOX BLACK
5257830-521
£120,36 Unit Price incl. VAT
16
SCREW
7517406
£5,63 Unit Price incl. VAT
17
GROMMET
5414802
£5,46 Unit Price incl. VAT
18
SCREW
7518548
£2,18 Unit Price incl. VAT
19
WASHER
7556485
£5,63 Unit Price incl. VAT
20
GROMMET
5414663
£5,63 Unit Price incl. VAT
21
BREATHER HOSE
5450006
£41,89 Unit Price incl. VAT
22
PLATE BLOCK OFF INTAKE EU (CHINA ONLY)
5452281
£29,92 Unit Price incl. VAT
23
PLATE BLOCK OFF AIRBOX BASE EU (CHINA ONLY)
5452280
£20,40 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
