1
Engine displacement
1800
2
Year
2018
3
Trim
SPRINGFIELD DARK HORSE
4
Parts Catalog

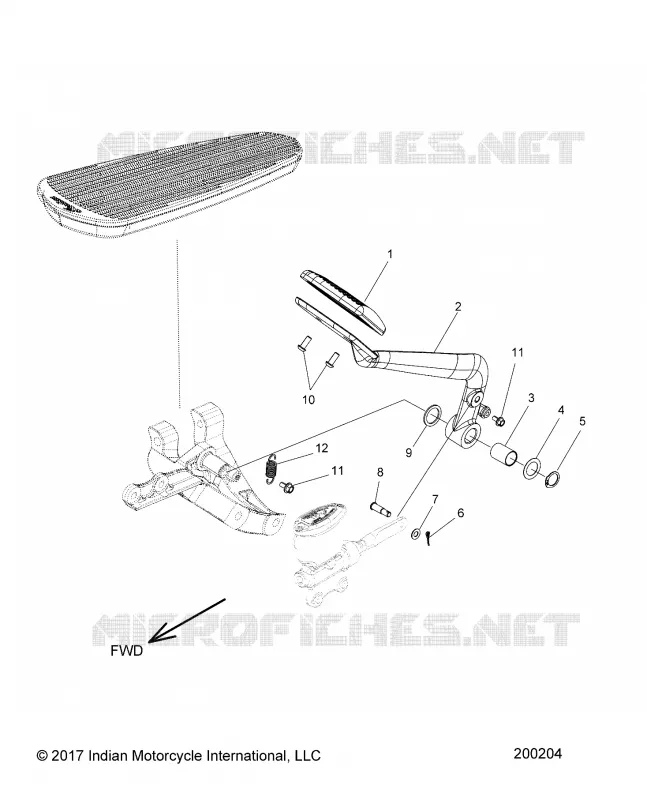

BRAKES, BRAKE PEDAL
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
ELECTRICAL, TURN SIGNAL, REAR AND TAILLIGHT
BRAKES, BRAKE PEDAL
1
2
3
4
5
6
7
8
9
10
11
11
12
1
PAD BRAKE LEVER
5414705
£42,65 Unit Price incl. VAT
2
ASM. BRAKE LEVER BLACK (INCL. 8)
1023250-266
£401,90 Unit Price incl. VAT
3
BEARING-SHIFT PEDAL
3514335
£24,48 Unit Price incl. VAT
4
WASHER
7556075
£12,72 Unit Price incl. VAT
5
RING RETAINING
7710499
£10,14 Unit Price incl. VAT
6
PIN COTTER
7661010
£1,56 Unit Price incl. VAT
7
WASHER
7556121
£1,96 Unit Price incl. VAT
8
PIN CLEVIS
7662144
Not Available
9
WASHER WAVE
7556273
£3,92 Unit Price incl. VAT
10
SCREW-TXBH-M6X1.0X15 10.9 ZPC
7520830
£10,14 Unit Price incl. VAT
11
SCREW HXFLG
7517704
£10,14 Unit Price incl. VAT
12
SPRING-EXTENSION BRAKE RETURN
7042288
£57,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
