SADDLEBAG ASM.
5

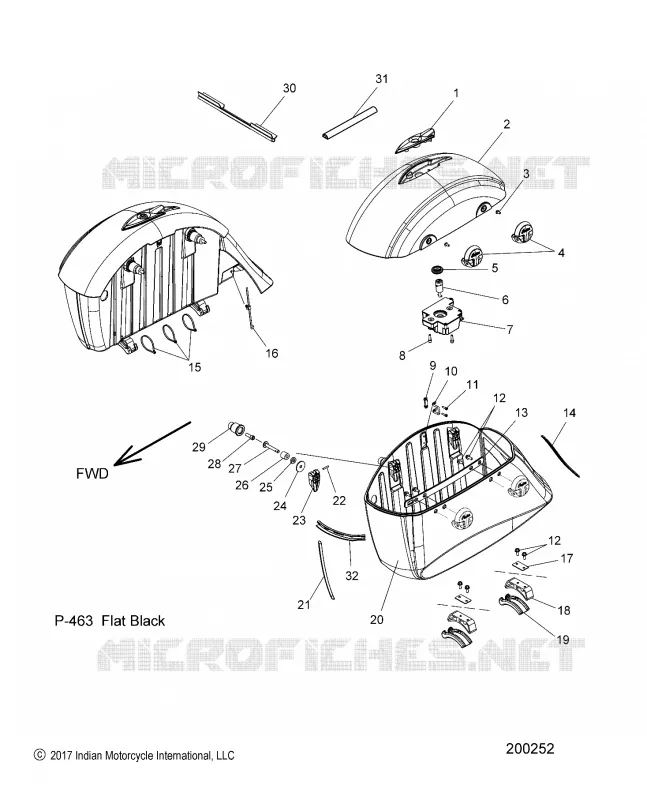

Parts Diagram
Parts Catalog
MIRRORSS
by
FUEL SYSTEM, FUEL TANK MOUNTING
SADDLEBAG ASM.
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
BEZEL LOCK SADDLEBAG BLK
5450924-266
£92,97 Unit Price incl. VAT
2
LID SADDLEBAG LH
5450213-463
Not Available
2
LID SADDLEBAG RH
5450214-463
£686,87 Unit Price incl. VAT
3
SCREW
7518338
£5,63 Unit Price incl. VAT
4
ASM. HINGE SADDLEBAG REAR CHROME [FRONT ON RH SIDE REAR ON LH SIDE]
2634925-156
£114,17 Unit Price incl. VAT
4
ASM. HINGE SADDLEBAG FRONT CHROME [FRONT ON LH SIDE REAR ON RH SIDE]
2634898-156
£114,17 Unit Price incl. VAT
5
SEAL LOCK SADDLEBAG
5414686
£2,73 Unit Price incl. VAT
6
KIT LOCK STEERING HEAD/SADDLEBAG (INCL. LOCK KEY SREWS AND SADDLEBAG PUSHBUTTON LOCKS)
2635146
£209,32 Unit Price incl. VAT
7
LOCK ELECTRONIC SADDLEBAG
4016854
4017838
£298,29 Unit Price incl. VAT
8
SCREW
7517305
£5,63 Unit Price incl. VAT
9
ASM. BRACKET HOOP
1016590
1026382
£28,56 Unit Price incl. VAT
10
HOOP LATCH STRIKER RH
5338191
£28,56 Unit Price incl. VAT
10
HOOP LATCH STRIKER LH
5338190
£28,56 Unit Price incl. VAT
11
SCREW-SH-M4X0.7X16 8.8 ZB
7518812
£5,46 Unit Price incl. VAT
12
SCREW
7518591
£2,03 Unit Price incl. VAT
13
BRKT. HINGE RH FLAT BLACK
5138475-463
£41,01 Unit Price incl. VAT
13
BRKT. HINGE LH FLAT BLACK
5138474-463
£41,01 Unit Price incl. VAT
14
TRIM SADDLEBAG REAR
5452911
Not Available
15
PANDUIT STRAP
7080138
£2,37 Unit Price incl. VAT
16
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
17
PLATE BACKUP SADDLEBAG
5257409
£11,02 Unit Price incl. VAT
18
BRKT. MOUNT SADDLEBAG
5257139
5511003-329
£41,01 Unit Price incl. VAT
19
PAD MOUNT SADDLEBAG
5414642
£28,56 Unit Price incl. VAT
20
ASM. BIN SADDLEBAG RH
5451494-463
5456386-463
£1 109,95 Unit Price incl. VAT
20
ASM. BIN SADDLEBAG LH
5451493-463
£945,69 Unit Price incl. VAT
21
TRIM SADDLEBAG FRONT
5452912
Not Available
22
PIN DOWEL
7661970
£2,18 Unit Price incl. VAT
23
LATCH CAM
5450622
Not Available
24
WASHER RUBBER
5414770
£2,18 Unit Price incl. VAT
25
SPACER LATCH
5139225
£12,24 Unit Price incl. VAT
26
BUSHING ANCHOR SADDLEBAG
5414757
£4,37 Unit Price incl. VAT
27
PIN ANCHOR
7662154
£13,87 Unit Price incl. VAT
28
SCREW
7520170
£3,27 Unit Price incl. VAT
29
SPOOL SADDLEBAG
5139710
Not Available
30
SEAL SADDLEBAG MECH.
5415263
5416881
£52,20 Unit Price incl. VAT
31
COVER WIRE SADDLEBAG LID
5522014
£41,89 Unit Price incl. VAT
32
CLIP SADDLEBAG HARNESS RH
5452010
£8,45 Unit Price incl. VAT
32
CLIP SADDLEBAG HARNESS LH
5452006
£8,45 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
