1
Engine displacement
1800
2
Year
2018
3
Trim
SPRINGFIELD DARK HORSE
4
Parts Catalog

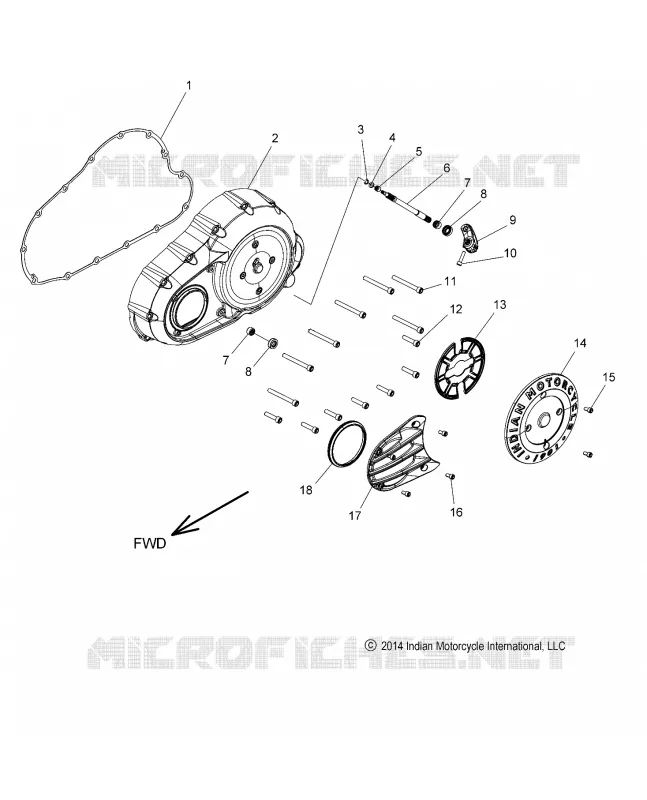

PRIMARY COVER ASM.
5
Parts Diagram
Parts Catalog
ENGINE, PISTON AND CRANKSHAFT
by
SEAT
PRIMARY COVER ASM.
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
15
17
18
1
GASKET PRIMARY COVER
5813897
£71,59 Unit Price incl. VAT
2
ASM. PRIMARY COVER BLK [INCL. 5 7 8]
1205125-521
£806,33 Unit Price incl. VAT
3
RING RETAINING
7710638
£1,49 Unit Price incl. VAT
4
WASHER
7555872
£6,55 Unit Price incl. VAT
5
BEARING NDL
3512106
£24,48 Unit Price incl. VAT
6
PINION CLUTCH
6230585
£144,43 Unit Price incl. VAT
7
BEARING NDL M12X16X10 CLTSHF
3552105
£24,48 Unit Price incl. VAT
8
SEAL SHAFT
3610154
£11,27 Unit Price incl. VAT
9
LEVER CLUTCH PINION
5139081-425
Not Available
10
SCREW
7517259
£7,88 Unit Price incl. VAT
11
SCREW
7518685
£3,92 Unit Price incl. VAT
12
SCREW
7518347
£7,88 Unit Price incl. VAT
13
PAD PRIMARY COVER
5414687
£71,81 Unit Price incl. VAT
14
COVER PRIMARY CAP CHROME
5257410-156
£288,86 Unit Price incl. VAT
15
SCREW
7517405
£12,72 Unit Price incl. VAT
16
SCREW
7517405
£12,72 Unit Price incl. VAT
17
COVER ACCESS HOLE BLACK
5138847-521
£213,50 Unit Price incl. VAT
18
SEAL PRIMARY ACCESS HOLE
5416059
£48,96 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
