1
Engine displacement
1000
2
Year
2016
3
Trim
SCOUT SIXTY
4
Parts Catalog
ELECTRICAL, WIRE HARNESS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH
by
CYLINDER AND CYL. HEAD MOUNTING

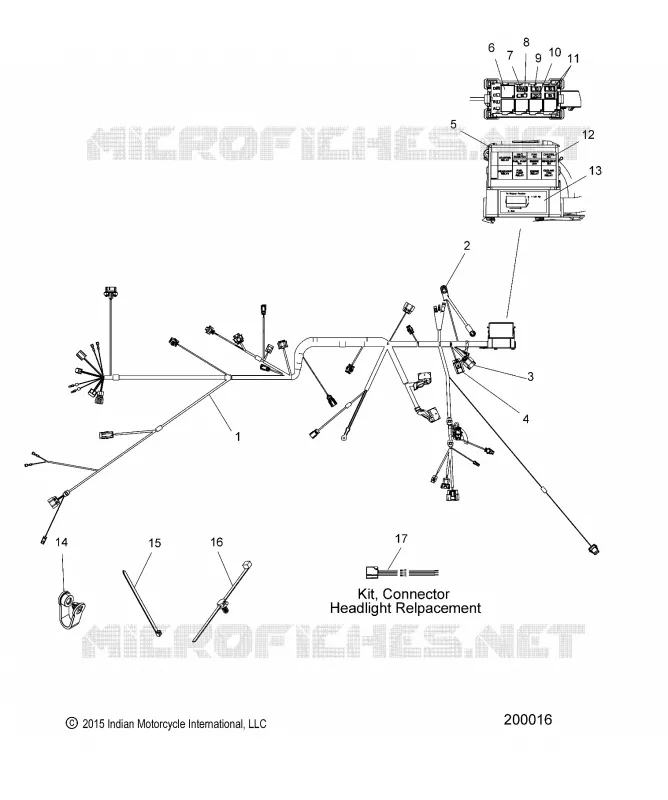

ELECTRICAL, WIRE HARNESS
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
HARNESS CHASSIS SPLICE
2413218
£872,03 Unit Price incl. VAT
1
HARNESS CHASSIS SPLICE ABS [INTL]
2413357
£1 116,91 Unit Price incl. VAT
2
SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]
-------
Not Available
3
COVER DIAGNOSTIC W/CLIP
4012654
£15,79 Unit Price incl. VAT
4
FUSE ATC 40A
4012421
£50,27 Unit Price incl. VAT
5
COVER RELAY/FUSE CENTER
5438758
£18,66 Unit Price incl. VAT
6
RELAY SPST SERIES 303
4011283
4016819
£50,27 Unit Price incl. VAT
7
RESISTOR 68 OHM MINI
4013062
£64,63 Unit Price incl. VAT
8
FUSE MINI BLADE 15 AMP
2410280
4010859
£13,22 Unit Price incl. VAT
9
BREAKER CIRCUIT 10 AMP
4011371
£28,72 Unit Price incl. VAT
10
BREAKER CIRCUIT 20 AMP
4011372
£64,63 Unit Price incl. VAT
11
BREAKER CIRCUIT 15 AMP
4011406
£98,44 Unit Price incl. VAT
12
DECAL FUSEBOX
7179867
£1,74 Unit Price incl. VAT
13
DECAL FUSE BOX REMOVAL
7171031
£0,12 Unit Price incl. VAT
14
CLAMP ROUTING
7081920
£29,38 Unit Price incl. VAT
15
PANDUIT STRAP
7080138
£2,84 Unit Price incl. VAT
16
CLIP-ROUTING
7081496
£6,76 Unit Price incl. VAT
17
K-CONNECTOR HEADLIGHT REPLACEMENT
2205394
£98,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
