1
Engine displacement
1000
2
Year
2016
3
Trim
SCOUT SIXTY
4
Parts Catalog

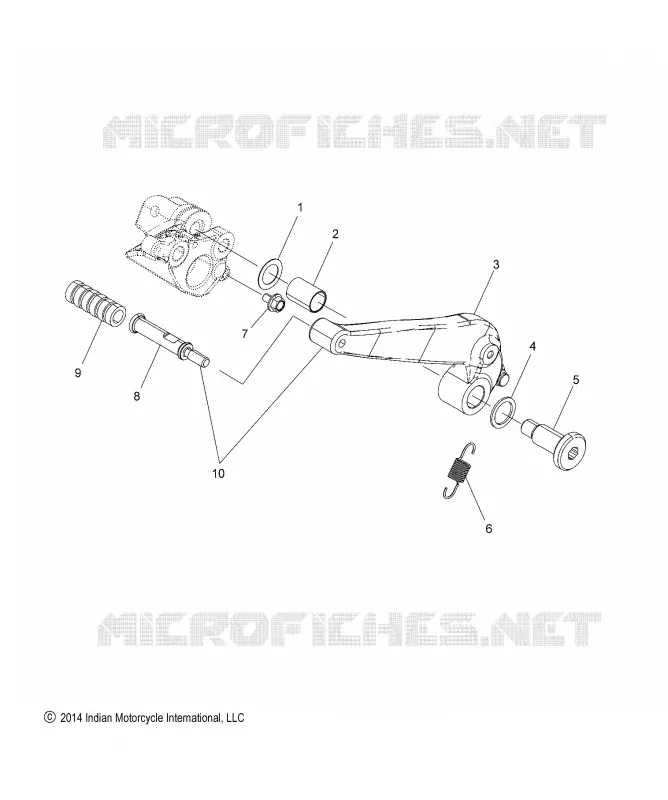

BRAKES, BRAKE PEDAL
5
Parts Diagram
Parts Catalog
FRONT BRAKE ASM.
by
STARTER MOTOR
BRAKES, BRAKE PEDAL
1
2
3
4
5
6
7
8
9
10
1
WASHER
7556843
£29,38 Unit Price incl. VAT
2
BEARING-SHIFT PEDAL
3514335
£24,48 Unit Price incl. VAT
3
PEDAL BRAKE N BLK
5138885-658
£91,87 Unit Price incl. VAT
4
WASHER WAVE
7556273
£3,92 Unit Price incl. VAT
5
SCREW SHOULDER PIVOT
7519893
£48,96 Unit Price incl. VAT
6
SPRING EXT. BRAKE RETURN
7042186
£14,88 Unit Price incl. VAT
7
SCREW
7518140
£5,24 Unit Price incl. VAT
8
PEG PEDAL [SVC PART IS UNPAINTED]
5138965
£45,70 Unit Price incl. VAT
9
PAD SHIFT PEDAL
5411364
£28,43 Unit Price incl. VAT
10
ASM. PEDAL BRAKE N BLK [INCL. 3 8]
1020033-658
£285,97 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
