ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
CONTROLS, CLUTCH LEVER ASM. AND CABLE
by
ENGINE, VALVE COVERS

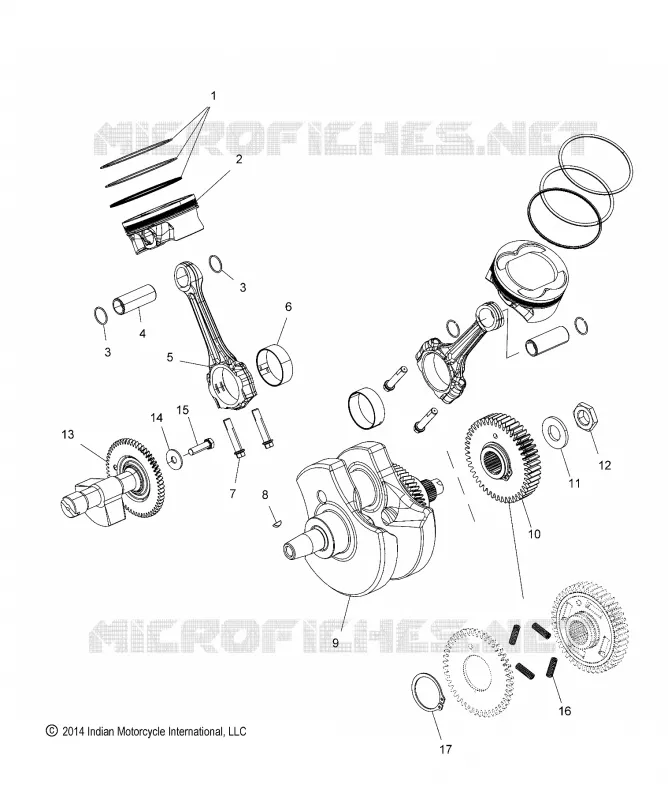

ENGINE, PISTON AND CRANKSHAFT
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
KIT RINGS PISTON (STANDARD)
2204949
£113,35 Unit Price incl. VAT
2
ASM. PISTON [INCL. RINGS PIN RET. RINGS]
3022762
£213,50 Unit Price incl. VAT
3
RING RETAINING
7710479
£10,14 Unit Price incl. VAT
4
PIN PISTON
3022291
£58,75 Unit Price incl. VAT
5
ASM. CONNECTING ROD [INCL. 7]
3023055
£353,95 Unit Price incl. VAT
6
BEARING CONNECTING ROD ORANGE
3514804-159
3514966-159
£24,48 Unit Price incl. VAT
6
BEARING CONNECTING ROD BLUE
3514804-027
3514966-027
£24,48 Unit Price incl. VAT
6
BEARING CONNECTING ROD BLACK
3514804-067
3514966-067
£24,48 Unit Price incl. VAT
7
BOLT CONNECTING ROD (7520356)
7519833
£15,66 Unit Price incl. VAT
8
KEY WOODRUFF
7721122
£10,14 Unit Price incl. VAT
9
ASM. CRANKSHAFT [INCL. 8]
3023054
£1 630,58 Unit Price incl. VAT
10
ASM. GEAR CRANKSHAFT [INCL. 16 17]
1333532
1334616
£302,58 Unit Price incl. VAT
11
WASHER
7556518
£12,72 Unit Price incl. VAT
12
NUT
7547477
£19,58 Unit Price incl. VAT
13
ASM. BALANCE SHAFT
1204839
£332,82 Unit Price incl. VAT
14
WASHER
7556771
£12,72 Unit Price incl. VAT
15
SCREW
7518575
£29,38 Unit Price incl. VAT
16
SPRING SPLIT GEAR
7044475
Not Available
17
RING RETAINING
7710817
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
