1
Engine displacement
1000
2
Year
2016
3
Trim
SCOUT SIXTY
4
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
5
Parts Diagram
Parts Catalog
CHASSIS, FOOTPEGS
by
HANDLEBAR ASSEMBLY

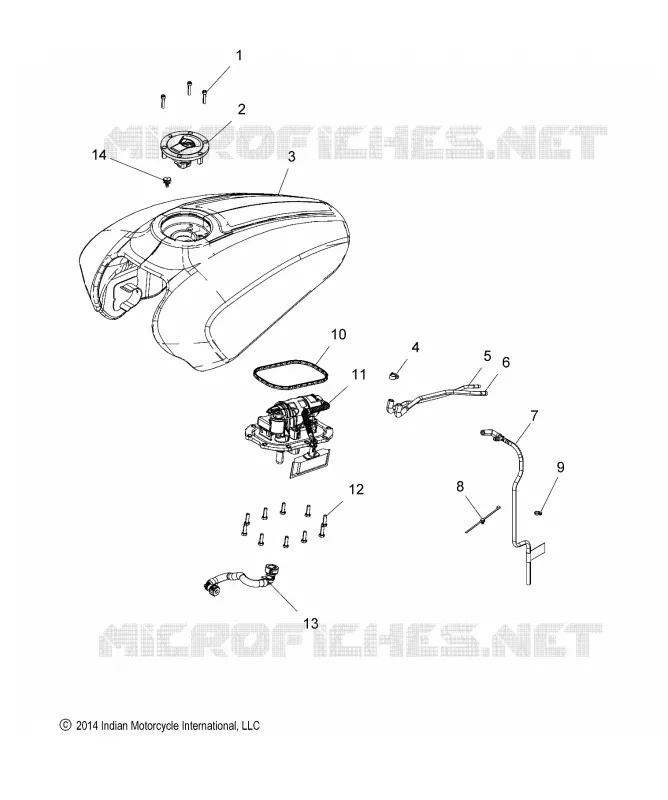

FUEL SYSTEM, FUEL TANK ASM.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
SCREW
7518086
£7,88 Unit Price incl. VAT
2
ASM. IGN/FUEL/FORK LOCK INTL BLK [INTL.][INCL. IGN. and FUEL LOCK]
4016936-266
£257,46 Unit Price incl. VAT
2
ASM. IGN. /FUEL BLK [INCL. FUEL LOCK IGN. SWITCH]
4014434-266
£207,23 Unit Price incl. VAT
3
ASM. FUEL TANK GLOSS WHITE PEARL
1021889-566
1024443-566
£2 502,61 Unit Price incl. VAT
3
ASM. FUEL TANK INDIAN RED
1021889-639
1024443-639
£2 639,99 Unit Price incl. VAT
3
ASM. FUEL TANK BLACK
1021889-266
1024443-266
£2 651,94 Unit Price incl. VAT
4
CLAMP HOSE
7080003
£2,44 Unit Price incl. VAT
5
LINE FUEL VENT
5450688
£71,81 Unit Price incl. VAT
6
LINE WATER DRAIN
5450687
£50,27 Unit Price incl. VAT
7
LINE WATER/VENT TO GRND
5450689
£50,27 Unit Price incl. VAT
8
CLIP-ROUTING
7081496
£6,76 Unit Price incl. VAT
9
PANDUIT STRAP
7080138
£2,84 Unit Price incl. VAT
10
SEAL FUEL PFA
5414830
£44,06 Unit Price incl. VAT
11
ASM. FILTER FUEL SVC
2521898
£89,48 Unit Price incl. VAT
11
THERMISTOR
2521524
Not Available
11
PUMP FUEL BTM MOUNT
2521564
2521733
£596,58 Unit Price incl. VAT
12
SCREW
7519765
£2,62 Unit Price incl. VAT
13
LINE TANK TO RAIL
5415283
5417407
£98,44 Unit Price incl. VAT
14
ASM. ADAPTER VENT
2635426
£9,91 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
