1
Engine displacement
1720
2
Year
2012
3
Trim
chief-classic-vintage-dark-horse
4
Parts Catalog
ENGINE, PRIMARY HOUSING
5
Parts Diagram
Parts Catalog
ENGINE, PRIMARY GASKET AND SEAL KIT
by
REAR BRAKE BRAKE CALIPER

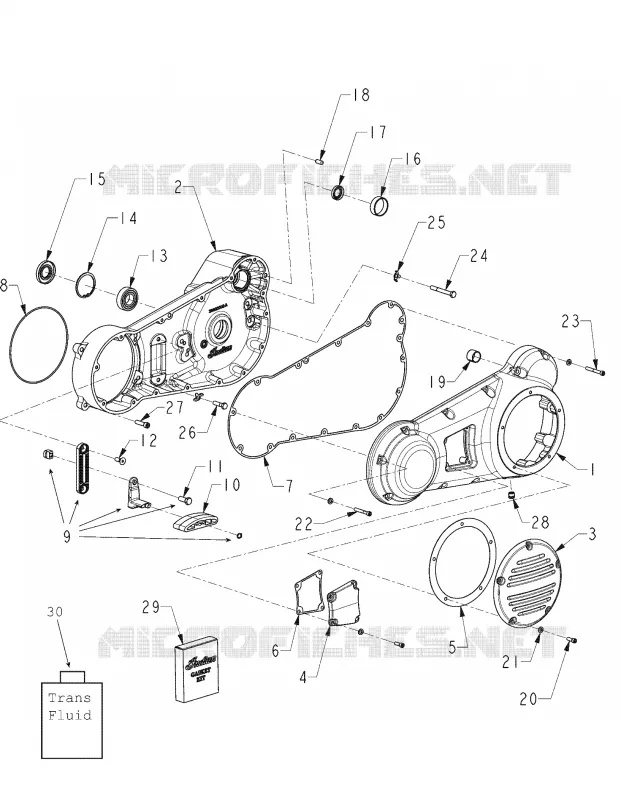

ENGINE, PRIMARY HOUSING
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
-
Transmission Oil [Sold in Qty. of 12 Qrts.]
N90700005
Not Available
1
Cover Primary Matte Blk [Dark Horse]
N30800009
Not Available
1
Cover Primary CHR [Classic Vintage]
N30872317
Not Available
2
Cover Inner Primary [Dark Horse]
N30872328
Not Available
3
Cover Clutch Matte Blk [Dark Horse]
N30800012
Not Available
3
Cover Clutch CHR [Classic Vintage]
N30800004
Not Available
4
Cover Inspection CHR [Classic Vintage]
N30800003
Not Available
4
Cover Inspection Matte Blk [Dark Horse]
N30800011
Not Available
5
Gasket Clutch Cover
N31072326
Not Available
6
Gasket Inspection Cover
N31072324
Not Available
7
Gasket Primary Cover
N31072318
Not Available
8
O-Ring Viton
N73000002
Not Available
9
Asm. Chain Tensioner
N30571006
Not Available
10
Adjuster Shoe Primary Chain
N30571023
Not Available
11
Screw
N70196243
Not Available
12
Screw
N70196245
Not Available
13
Bearing Ball
N71371190
Not Available
14
Ring Retaining Int.
N70571188
Not Available
15
Seal Dual Lip
N71271189
Not Available
16
Bushing
N71472026
Not Available
17
Seal Dual Lip
N71271004
Not Available
18
Pin Dowel
N70896246
Not Available
19
Bushing
5138134
Not Available
20
Screw
N70196206
Not Available
21
Washer Type B-N
N70496894
Not Available
22
Screw
N70100012
Not Available
23
Screw
N70100011
Not Available
24
Screw
N70196071
Not Available
25
Washer Tabbed Lock
N70496264
Not Available
26
Screw
N70196072
Not Available
27
Screw
N70196873
Not Available
28
Plug Drain
N71101017
Not Available
29
Kit Primary Gasket and Seal
N90300006
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
