ENGINE, CAM BOX AND OIL PUMP FOR CHIEF CLASSIC / VINTAGE / DARK HORSE FROM 2012

DRIVE TRAIN, CLUTCH CONTROL

DRIVE TRAIN, CLUTCH

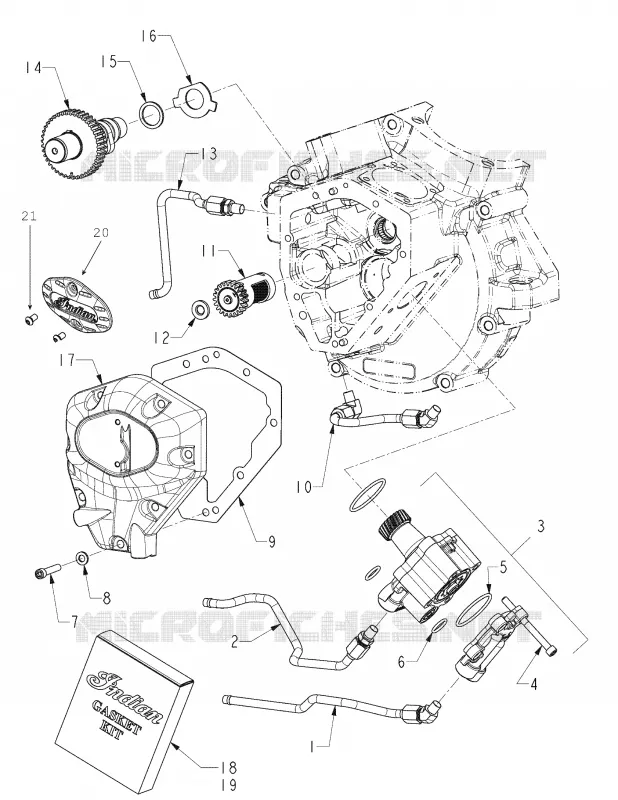

ENGINE, CAM BOX AND OIL PUMP

1

Asm. Feed LP

N71600032

Not Available

2

Asm. Return HP

N71600033

Not Available

3

Asm. Oil Pump

N11001243

Not Available

4

Screw

N70100044

Not Available

5

O-RIng 1.612 ID

N73000000

Not Available

6

O-Ring .549 ID

N73000001

Not Available

7

Screw

N70100049

Not Available

8

Washer Type B-N

N70496894

Not Available

9

Gasket Cam Cover

N10601252

Not Available

10

Asm. HP Oil Feed

N71600031

Not Available

11

Valve Breather

N11200004

Not Available

12

Shim Breather 0.100#

N70400016

Not Available

12

Shim Breather 0.130#

N70400019

Not Available

12

Shim Breather 0.120#

N70400018

Not Available

12

Regulator Fuel Pressure

*********

Not Available

12

Shim Breather 0.110#

N70400017

Not Available

13

Asm. Vent Return

N71600034

Not Available

14

Asm. Camshaft

N10800004

Not Available

15

Shim Camshaft 0.050#

N70400027

Not Available

15

Shim Camshaft 0.065#

N70400030

Not Available

15

Shim Camshaft 0.055#

N70400028

Not Available

15

Shim Camshaft 0.085#

N70400034

Not Available

15

Shim Camshaft 0.060#

N70400029

Not Available

15

Shim Camshaft 0.090#

N70400035

Not Available

15

Shim Camshaft 0.075#

N70400032

Not Available

15

Shim Camshaft 0.070#

N70400031

Not Available

15

Shim Camshaft 0.095#

N70400036

Not Available

15

Shim Camshaft 0.080#

N70400033

Not Available

16

Washer Thrust

N10801105

Not Available

17

Cover Cam Chrome

N10500011

Not Available

18

Kit Engine Gasket Complete

N90100009

Not Available

19

Kit Gasket Oil Pump

N90100010

Not Available

20

Badge Cam Cover

N15000000

Not Available

21

Screw

N70100053

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
