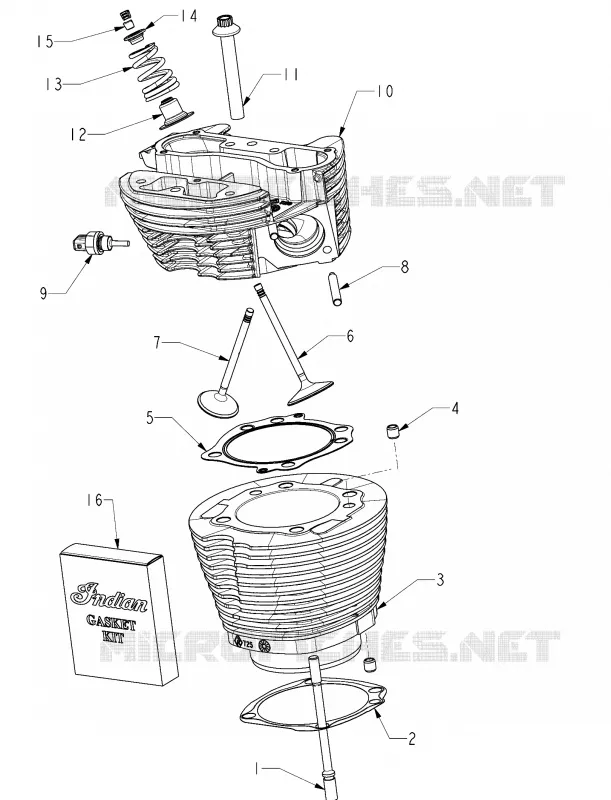

CYLINDERS, HEADS AND VALVES

1

Stud Cylinder

N70200004

Not Available

2

Gasket Base

N10601268

Not Available

3

Cylinder Rear [Classic Vintage]

N10301234

Not Available

3

Cylinder Front [Dark Horse]

N10200020

Not Available

3

Cylinder Rear [Dark Horse]

N10200021

Not Available

3

Cylinder Front [Classic Vintage]

N10301233

Not Available

4

Pin Dowel Hollow

N70801061

Not Available

5

Gasket Head

N10601266

£85,02 Unit Price incl. VAT

6

Valve Intake

N10901145

Not Available

7

Valve Exhaust

N10901150

Not Available

8

Stud Exhaust

N70201165

£7,88 Unit Price incl. VAT

9

Sensor Engine Temp.

N60800000

Not Available

10

Head Cylinder Rear [Classic Vintage]

N10200013

Not Available

10

Head Cylinder Front PTD Fins [Dark Horse]

N10200018

Not Available

10

Head Cylinder Front [Classic Vintage]

N10200012

Not Available

10

Head Cylinder Rear PTD Fins [Dark Horse]

N10200019

Not Available

11

Bolt Long Cylinder Head

N70100083

Not Available

12

Seal Valve High Temp

N10900019

Not Available

13

Spring Valve

N10901601

Not Available

14

Retainer Valve Spring

N10901156

Not Available

15

Keeper Valve Spring

N10901159

Not Available

16

Kit Gasket Top End

N90100008

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
