1
Engine displacement
1720
2
Year
2012
3
Trim
CHIEF CLASSIC / VINTAGE / DARK HORSE
4
Parts Catalog
EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH
by
ENGINE, ENGINE ASSEMBLY

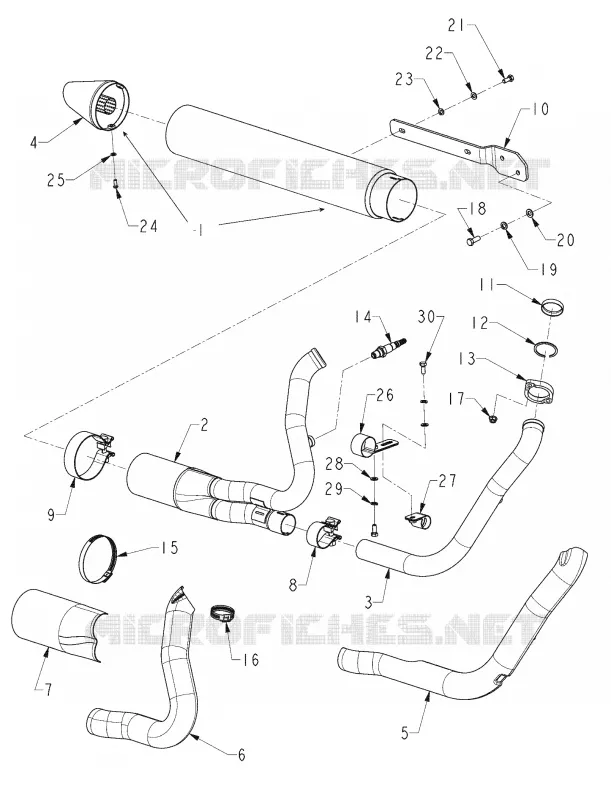

EXHAUST SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
22
23
21
1
Asm. Muffler w/Tip CHR [Classic Vintage]
N50700037
£1 051,21 Unit Price incl. VAT
1
Asm. Muffler w/Tip Matte BLK [Dark Horse]
N50700043
Not Available
2
Asm. Common Volume
N50700018
Not Available
3
Asm. Headpipe Front
N50700027
Not Available
4
Asm. OE Muffler Tip Matte Blk [Dark Horse]
N50700044
Not Available
4
Asm. OE Muffler Tip [Classic Vintage]
N50700024
£251,18 Unit Price incl. VAT
5
Asm. Heat Shield Front Matte Blk [Dark Horse]
N50700041
£376,79 Unit Price incl. VAT
5
Asm. Heat Shield Front [Classic Vintage]
N50700028
£138,14 Unit Price incl. VAT
6
Asm. Heat Shield Rear Matte Blk [Dark Horse]
N50700047
£313,98 Unit Price incl. VAT
6
Asm. Heat Shield Rear [Classic Vintage]
N50700029
£238,63 Unit Price incl. VAT
7
Asm. Heat Shield CV [Classic Vintage]
N50700020
£238,63 Unit Price incl. VAT
7
Aam. Heat Shield CV Matte Blk [Dark Horse]
N50700048
£288,86 Unit Price incl. VAT
8
Clamp Headpipe Front 48.5mm
N73137411
Not Available
9
Clamp Muffler 100mm
N73137507
Not Available
10
Brkt. Muffler
N50737522
Not Available
11
Gasket Exhaust
N50701319
Not Available
12
Ring Snap Exhaust
N50737164
Not Available
13
Flange Exhaust
N50737026
Not Available
14
Sensor Oxygen Heated
4011853
£169,55 Unit Price incl. VAT
15
Clamp Worm Drive 108mm
N73137512
Not Available
16
Clamp Worm Drive 51mm
N50700003
Not Available
17
Nut Flange
N70300006
Not Available
18
Screw
N70196173
Not Available
19
Washer Lock
N70496904
Not Available
20
Washer Type B-N
N70496895
Not Available
21
Screw
N70100055
Not Available
22
Washer
N70400009
Not Available
23
Washer Lock
N70400015
Not Available
24
Screw
N70196231
Not Available
24
Screw
N70100096
Not Available
25
Washer Z/B
N70400063
Not Available
25
Washer Chrome
N70400008
Not Available
26
Brkt. Headpipe Front
N50700034
Not Available
27
Brkt. Headpipe Frame Front
N50700035
Not Available
28
Washer
N70400009
Not Available
29
Washer Lock
N70400015
Not Available
30
Screw
N70100055
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
