1
Engine displacement
1720
2
Year
2013
3
Trim
chief-classic-dark-horse-vintage
4
Parts Catalog

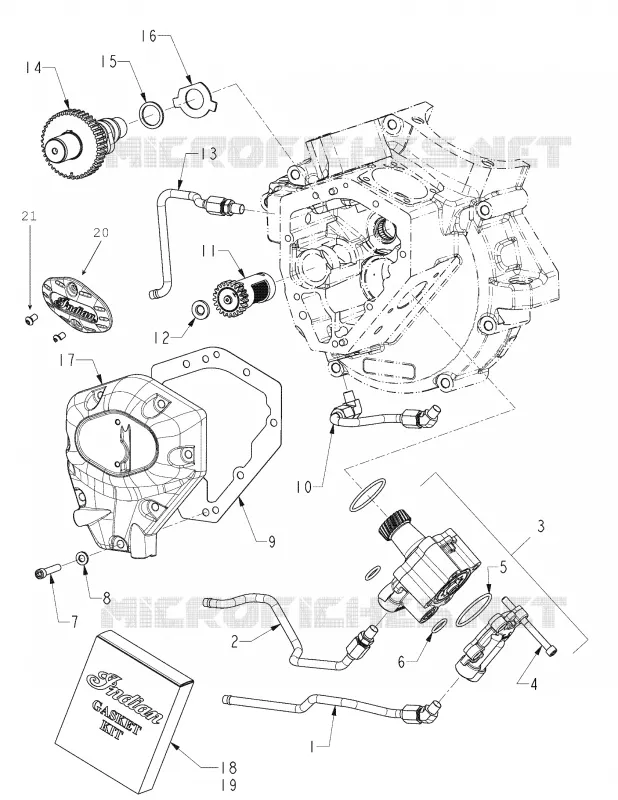

ENGINE, CAM BOX AND OIL PUMP
5
Parts Diagram
Parts Catalog
HORN
by
CRANKCASE AND OIL FILTER
ENGINE, CAM BOX AND OIL PUMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Asm. Feed LP
N71600032
Not Available
2
Asm. Return HP
N71600033
Not Available
3
Asm. Oil Pump
N11001243
Not Available
4
Screw
N70100044
Not Available
5
O-RIng 1.612 ID
N73000000
Not Available
6
O-Ring .549 ID
N73000001
Not Available
7
Screw
N70100049
Not Available
8
Washer Type B-N
N70496894
Not Available
9
Gasket Cam Cover
N10601252
Not Available
10
Asm. HP Oil Feed
N71600031
Not Available
11
Valve Breather
N11200004
Not Available
12
Shim Breather 0.100#
N70400016
Not Available
12
Shim Breather 0.130#
N70400019
Not Available
12
Shim Breather 0.120#
N70400018
Not Available
12
Regulator Fuel Pressure
*********
Not Available
12
Shim Breather 0.110#
N70400017
Not Available
13
Asm. Vent Return
N71600034
Not Available
14
Asm. Camshaft
N10800004
Not Available
15
Shim Camshaft 0.050#
N70400027
Not Available
15
Shim Camshaft 0.065#
N70400030
Not Available
15
Shim Camshaft 0.055#
N70400028
Not Available
15
Shim Camshaft 0.085#
N70400034
Not Available
15
Shim Camshaft 0.060#
N70400029
Not Available
15
Shim Camshaft 0.090#
N70400035
Not Available
15
Shim Camshaft 0.075#
N70400032
Not Available
15
Shim Camshaft 0.070#
N70400031
Not Available
15
Shim Camshaft 0.095#
N70400036
Not Available
15
Shim Camshaft 0.080#
N70400033
Not Available
16
Washer Thrust
N10801105
Not Available
17
Cover Cam Chrome
N10500011
Not Available
18
Kit Engine Gasket Complete
N90100009
Not Available
19
Kit Gasket Oil Pump
N90100010
Not Available
20
Badge Cam Cover
N15000000
Not Available
21
Screw
N70100053
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
