DRIVE TRAIN, CLUTCH FOR CHIEF CLASSIC / DARK HORSE / VINTAGE FROM 2013

DRIVE TRAIN, BELTS, CHAINS AND SPROCKETS

DRIVE TRAIN, CLUTCH CONTROL

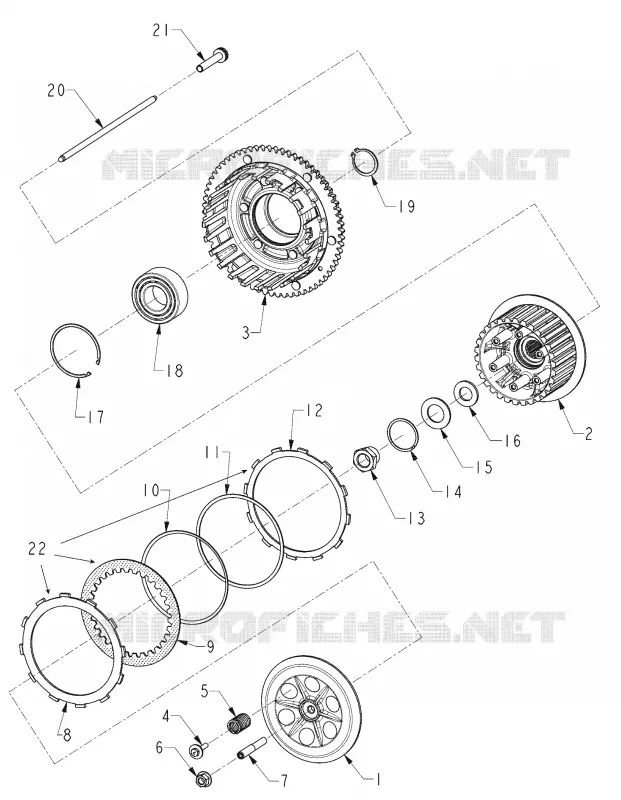

DRIVE TRAIN, CLUTCH

-

Clutch Complete

N30271000

Not Available

1

Plate Clutch Pressure

N30271105

Not Available

2

Hub Clutch Inner

N30271101

Not Available

3

Asm. Clutch Basket

N30271100

Not Available

4

Screw SEMS

N70171112

Not Available

5

Spring Clutch 217 lb

N30200003

Not Available

6

Nut

N70300000

Not Available

7

Adjustor Clutch Pushrod

N30200005

£418,65 Unit Price incl. VAT

10

Spring-Judder Clutch

N30271107

Not Available

11

Seat Judder-Spring Clutch

N30271106

Not Available

12

Disk Friction B Judder Clutch

N30271104

Not Available

13

Nut Clutch

N70300002

Not Available

14

Ring Ret. Internal WH-175

N70500009

Not Available

15

Washer Thrust Clutch

N70400069

Not Available

16

Washer 3/4 Flat Hard Clutch

N30200000

Not Available

17

Ring Ret. Int Clutch 72MM

N70500000

Not Available

18

Regulator Fuel Pressure

*********

Not Available

19

Ring Ret. Ext Clutch 35MM

N70571113

Not Available

20

Rod Push Clutch

N30200006

£225,02 Unit Price incl. VAT

21

Asm. Bearing Clutch Pushrod

N20200002

£11,02 Unit Price incl. VAT

22

Kit Clutch Service [Incl. 8 9 12]

N90300012

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
