1
Engine displacement
1720
2
Year
2013
3
Trim
chief-classic-dark-horse-vintage
4
Parts Catalog

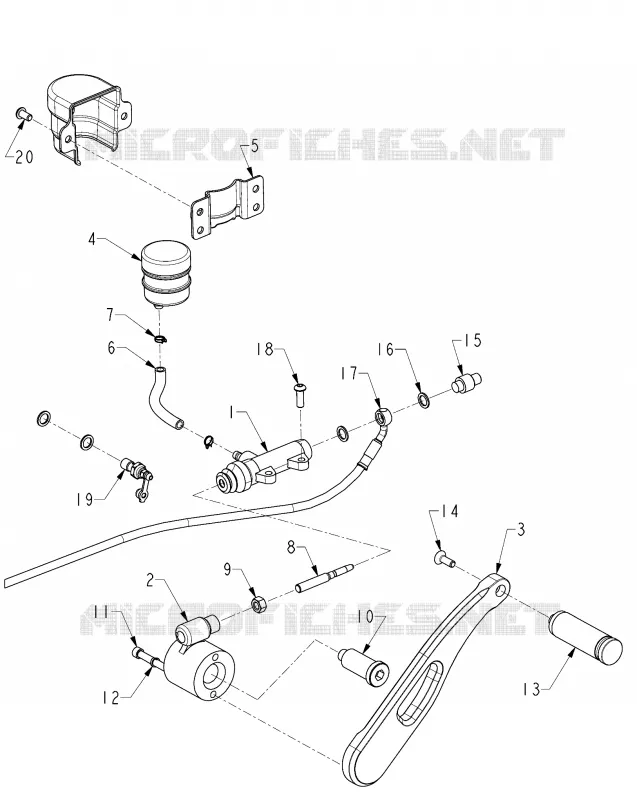

REAR BRAKE BRAKE CONTROL
5
Parts Diagram
Parts Catalog
REAR BRAKE BRAKE CALIPER
by
FRONT BRAKE BRAKE LINE
REAR BRAKE BRAKE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Master Cylinder Rear
N50841241
Not Available
2
Asm. Pivot Brake Spacer
N50841340
Not Available
3
Lever Brake Floorboard
N50841338
Not Available
4
Asm. RSVR Rear Brake Fluid
N50800013
Not Available
5
Cover RSVR Rear
N50850094
Not Available
6
Hose Brake RSVR
N71600017
Not Available
7
Clamp Hose
N73100002
Not Available
8
Rod Brake Actuator
N50841239
Not Available
9
Nut
N70396850
Not Available
10
Axle Pivot
N70141330
Not Available
11
Screw
N70196153
Not Available
12
Washer Lock
N70496903
Not Available
13
Set Toe Peg
N50800017
Not Available
13
Peg Toe Set Millenium
N90500147
Not Available
14
Screw
N70196149
Not Available
15
Asm. Switch Press Rear Brake
N61200012
Not Available
16
Washer Sealing AL
N50200060
Not Available
17
Hose Rear Brake
N50250088
Not Available
18
Screw
N70100059
Not Available
19
Bolt Banjo Bleeder
N50200022
Not Available
20
Screw
N70100058
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
