Engine displacement
1100
2
Year
2016
3
Trim
scout
4
Parts Catalog
DRIVE TRAIN, SHIFT FORKS, RATCHET AND DRUM
5

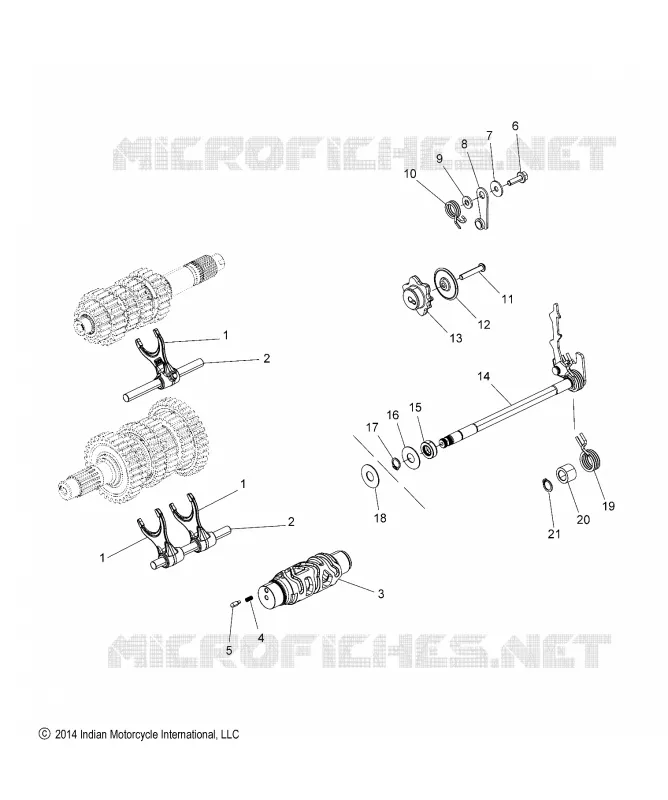

Parts Diagram
Parts Catalog
DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.
by
ELECTRICAL, BATTERY
DRIVE TRAIN, SHIFT FORKS, RATCHET AND DRUM
1
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
FORK SHIFT
5138520
£71,09 Unit Price incl. VAT
2
RAIL SHIFT FORK
5138750
£29,92 Unit Price incl. VAT
3
ASM. SHIFT DRUM 6-SPEED
1333137
Not Available
4
SPRING PIN SHIFT INDICATOR
7042307
£41,89 Unit Price incl. VAT
5
PIN INDICATOR
5334457
£24,48 Unit Price incl. VAT
6
SCREW-HXFLGHD M6X12
7517886
£2,18 Unit Price incl. VAT
7
WASHER
7556054
£10,60 Unit Price incl. VAT
8
ASM. ROLLER FOLLOWER
1333426
£41,89 Unit Price incl. VAT
9
WASHER PILOT
7556780
£24,48 Unit Price incl. VAT
10
SPRING TORSION RH
7044089
£9,64 Unit Price incl. VAT
11
SCREW
7519253
£2,18 Unit Price incl. VAT
12
WASHER STAR
7556749
£10,60 Unit Price incl. VAT
13
STAR SHIFTER
5137944
£109,37 Unit Price incl. VAT
14
ASM. SHIFTER RATCHET [INCL. 19-21]
1333157
1333461
£76,56 Unit Price incl. VAT
15
SEAL SHAFT
3610154
£9,39 Unit Price incl. VAT
16
WASHER
7555977
£8,45 Unit Price incl. VAT
17
RING RETAINING
7710645
£1,63 Unit Price incl. VAT
18
WASHER
7556748
£8,45 Unit Price incl. VAT
19
PISTON
*******
Not Available
20
SPACER SPRING RATCHET
5138274
£9,79 Unit Price incl. VAT
21
RING RETAINING
7710717
£7,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
