1
Engine displacement
1100
2
Year
2016
3
Trim
scout
4
Parts Catalog

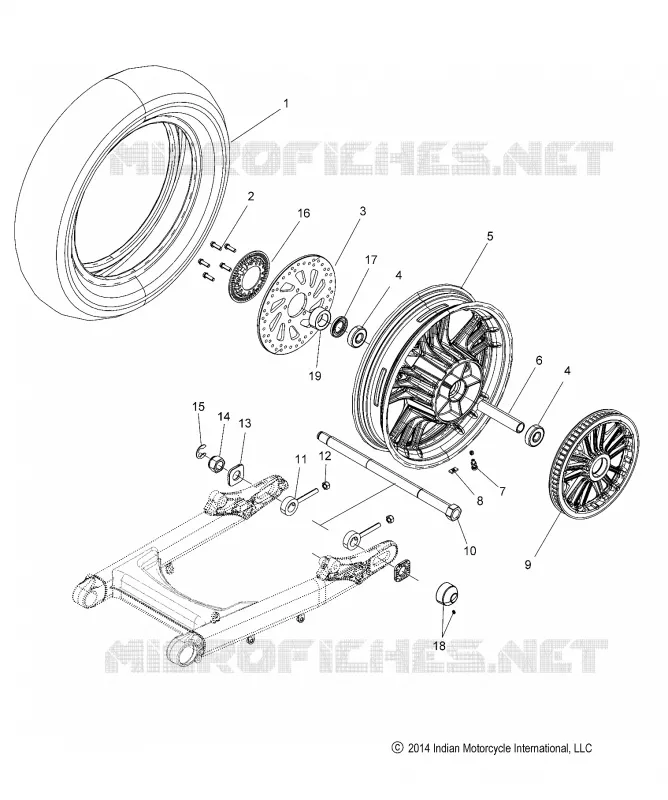

REAR WHEEL
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION FORKS
by
BODYWORK - FRONT FENDER/REAR
REAR WHEEL
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
TIRE REAR 150/80-16
5414555
£152,24 Unit Price incl. VAT
2
SCREW
7518661
7521014
£2,18 Unit Price incl. VAT
3
ROTOR
1912076
£120,36 Unit Price incl. VAT
4
BEARING
3514405
£20,40 Unit Price incl. VAT
5
WHEEL REAR 16 IN. CAST BLK MACH. [INCL. 4 6 7 17]
1522091-266M
£577,37 Unit Price incl. VAT
6
SPACER
5337828
£24,48 Unit Price incl. VAT
7
VALVE RIM
1521312
£13,05 Unit Price incl. VAT
8
WEIGHT STEEL 5 G BLK
1521682
Not Available
9
PISTON
*******
Not Available
10
AXLE REAR
5139827
5916588
£74,57 Unit Price incl. VAT
11
ADJUSTER AXLE
5138890
£28,56 Unit Price incl. VAT
12
NUT
7547144
£4,37 Unit Price incl. VAT
13
PLATE INDICATOR ADJUSTMENT
5257889
£13,78 Unit Price incl. VAT
14
NUT
7547739
£24,48 Unit Price incl. VAT
15
RING E-CLIP
7710746
£5,63 Unit Price incl. VAT
16
RING TONE ABS [ABS MODELS ONLY]
5257890
£71,09 Unit Price incl. VAT
17
SEAL
3610094
£32,64 Unit Price incl. VAT
18
ASM. COVER AXLE NUT [INTL ONLY]
1017531
£76,56 Unit Price incl. VAT
18
SCREW SET [INTL ONLY]
7518449
£5,46 Unit Price incl. VAT
19
SPACER BEARING REAR LH
5631479
£4,37 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
