1
Engine displacement
1100
2
Year
2020
3
Trim
SCOUT BOBBER / BOBBER TWENTY
4
Parts Catalog

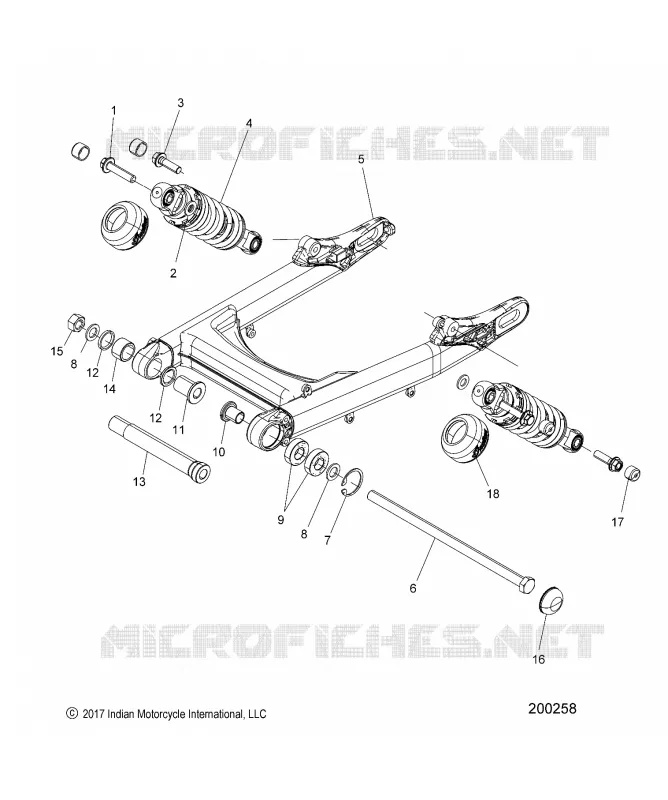

REAR SUSPENSION ASM., SWING ARM AND SHOCKS
5
Parts Diagram
Parts Catalog
ELECTRICAL, FUSE BLOCK
by
BRAKES, BRAKE PEDAL
REAR SUSPENSION ASM., SWING ARM AND SHOCKS
1
2
3
18
5
6
7
8
8
9
10
11
12
12
13
14
15
16
17
18
1
SCREW HXFLG
7520166
£16,64 Unit Price incl. VAT
2
COVER SHOCK [INTL ONLY]
5415436
£35,90 Unit Price incl. VAT
2
WASHER
7556287
£10,14 Unit Price incl. VAT
3
SCREW HXFLG
7518878
£6,76 Unit Price incl. VAT
4
ASM-SHOCK REAR LOW N BLK
1543808-266
£401,90 Unit Price incl. VAT
4
COVER SHOCK [INTL ONLY]
5415436
£35,90 Unit Price incl. VAT
5
ASM. SWINGARM [INCL. 7 9 12 14]
1824734-626
£477,26 Unit Price incl. VAT
6
SCREW HH
7519929
£48,96 Unit Price incl. VAT
7
RING RETAINING INTERNAL
7670149
£10,14 Unit Price incl. VAT
8
WASHER
7556236
£10,14 Unit Price incl. VAT
9
BEARING BALL
3514414
£18,67 Unit Price incl. VAT
10
BUSHING SWINGARM BALL BRG.
5631478
£6,76 Unit Price incl. VAT
11
BUSHING SWINGARM
5141067
£24,48 Unit Price incl. VAT
12
SEAL
3610096
£14,69 Unit Price incl. VAT
13
PIVOT SWINGARM
5140159
Not Available
14
BEARING NEEDLE ROLLER
3514413
£24,48 Unit Price incl. VAT
15
NUT
7540001
£6,76 Unit Price incl. VAT
16
COVER-SWINGARM PIVOT [INTL ONLY]
5416313
Not Available
17
CAP-BOLT HEAD [INTL ONLY]
5415562
£10,76 Unit Price incl. VAT
18
COVER SHOCK [INTL ONLY]
5415436
£35,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
