1
Engine displacement
1100
2
Year
2020
3
Trim
scout-bobber-bobber-twenty
4
Parts Catalog
ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
REAR BRAKE ASM. (NON ABS)
by
WHEEL, FRONT, WW

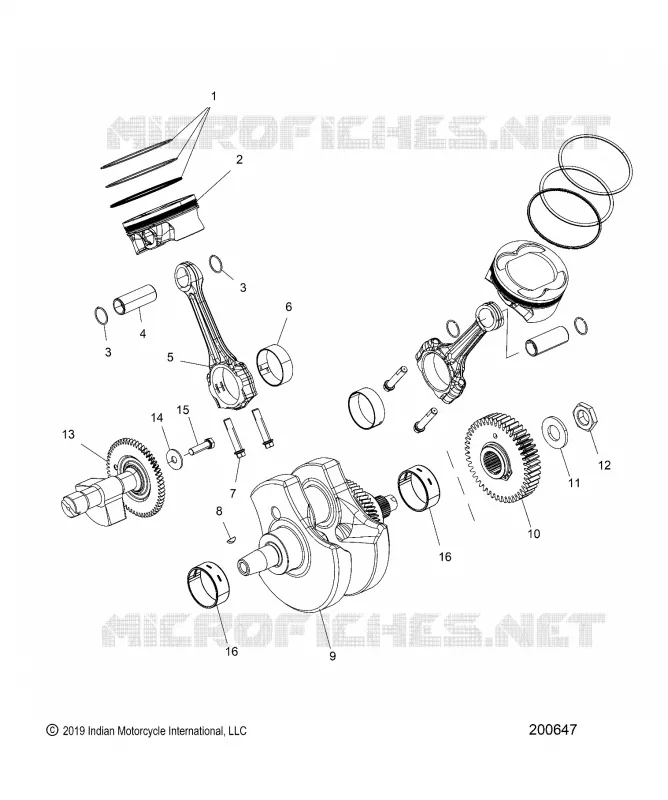

ENGINE, PISTON AND CRANKSHAFT
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
1
KIT RINGS PISTON (STANDARD)
2204733
£87,50 Unit Price incl. VAT
2
ASM. PISTON [INCL. RINGS PIN RET. RINGS]
3022488
£177,92 Unit Price incl. VAT
3
RING RETAINING
7710479
£8,45 Unit Price incl. VAT
4
PIN PISTON
3022291
£48,96 Unit Price incl. VAT
5
ASM. CONNECTING ROD [INCL. 7]
3023055
£294,96 Unit Price incl. VAT
6
BEARING-ROD 48X51X17 LD GRD 1
3515027-001
£20,40 Unit Price incl. VAT
6
BEARING-ROD 48X51X17 LD GRD 2
3515027-002
£20,40 Unit Price incl. VAT
6
BEARING-MAIN 48X51X17 LD GRD 3
3515027-003
£20,40 Unit Price incl. VAT
7
BOLT CONNECTING ROD
7520356
£24,48 Unit Price incl. VAT
8
KEY WOODRUFF
7721122
£8,45 Unit Price incl. VAT
9
ASM. CRANKSHAFT [INCL. 8]
3023558
£1 249,31 Unit Price incl. VAT
10
ASM. GEAR CRANKSHAFT [INCL. 16 17]
1333532
1334616
£252,15 Unit Price incl. VAT
11
WASHER
7556518
£10,60 Unit Price incl. VAT
12
NUT
7547477
£16,32 Unit Price incl. VAT
13
ASM. BALANCE SHAFT
1205618
£230,25 Unit Price incl. VAT
14
WASHER
7556771
£10,60 Unit Price incl. VAT
15
SCREW
7518575
£24,48 Unit Price incl. VAT
16
BEARING-MAIN 56X60X23 UP GRD 2
3515065-002
Not Available
16
BEARING-MAIN 56X60X23 UP GRD 3
3515065-003
Not Available
16
BEARING-MAIN 56X60X23 UP GRD 1
3515065-001
Not Available
16
BEARING-MAIN 56X60X23 LW GRD 3
3515066-003
Not Available
16
BEARING-MAIN 56X60X23 LW GRD 1
3515066-001
Not Available
16
BEARING-MAIN 56X60X23 LW GRD 2
3515066-002
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
