1
Engine displacement
1100
2
Year
2016
3
Trim
scout
4
Parts Catalog

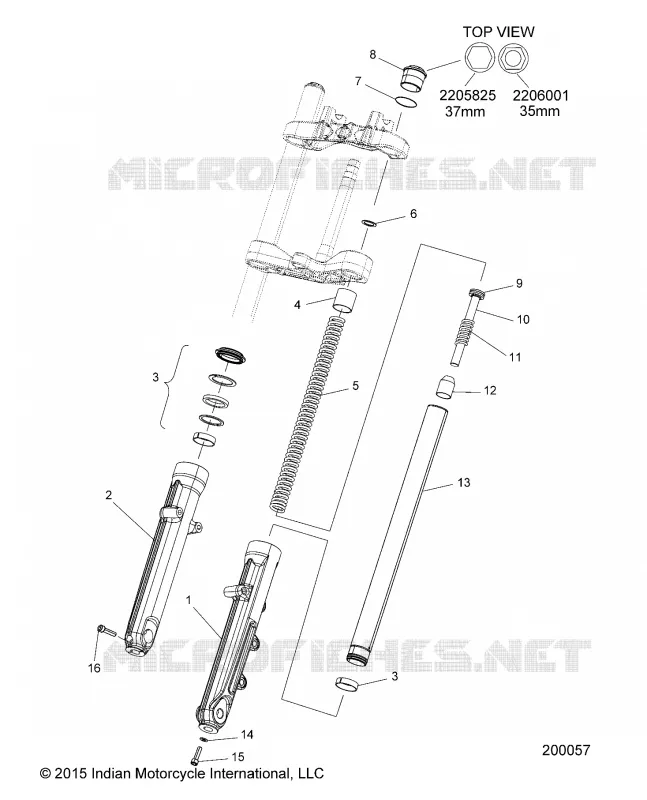

FRONT SUSPENSION FORKS
5
Parts Diagram
Parts Catalog
REFERENCES, OWNERS MANUAL, SPANNER WRENCH
by
REAR WHEEL
FRONT SUSPENSION FORKS
-
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
-
ASM. FORK LEG RH [INCL. 1-16]
1824417-266
£572,39 Unit Price incl. VAT
-
ASM. FORK LEG LH [INCL. 1-16]
1824416-266
£572,39 Unit Price incl. VAT
1
KIT SLIDER LEG LH
2205812
£277,35 Unit Price incl. VAT
2
KIT SLIDER LEG RH
2205811
£303,52 Unit Price incl. VAT
3
KIT SEALS/BUSHINGS
2205820
£67,12 Unit Price incl. VAT
4
KIT COLLAR SPRING
2205823
£12,40 Unit Price incl. VAT
5
KIT COMPRESSION SPRING
2205821
£29,92 Unit Price incl. VAT
6
KIT WASHER
2205822
£8,01 Unit Price incl. VAT
7
KIT O-RING
2205824
£2,73 Unit Price incl. VAT
7
KIT O-RING
2206353
£1,63 Unit Price incl. VAT
8
K-FORK CAP
2206001
£41,89 Unit Price incl. VAT
8
KIT FORK CAP
2205825
Not Available
9
KIT PISTON RING
2205815
£13,16 Unit Price incl. VAT
10
KIT PIPE SEAT
2205814
£35,90 Unit Price incl. VAT
11
KIT REBOUND SPRING
2205816
£15,55 Unit Price incl. VAT
12
KIT OIL LOCK
2205817
£29,92 Unit Price incl. VAT
13
KIT FORK PIPE COMPLETE
2205813
2205999
£193,62 Unit Price incl. VAT
13
K-FORK PIPE COMPLETE
2205999
£193,62 Unit Price incl. VAT
14
KIT CRUSH WASHER
2205818
£5,63 Unit Price incl. VAT
15
KIT BOLT M10
2205819
£8,45 Unit Price incl. VAT
16
KIT BOLT M8
2205826
£5,63 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
