1
Engine displacement
1100
2
Year
2022
3
Trim
SCOUT BOBBER / BOBBER TWENTY
4
Parts Catalog
ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
ENGINE, OIL SYSTEM
by
ENGINE, VALVE COVERS

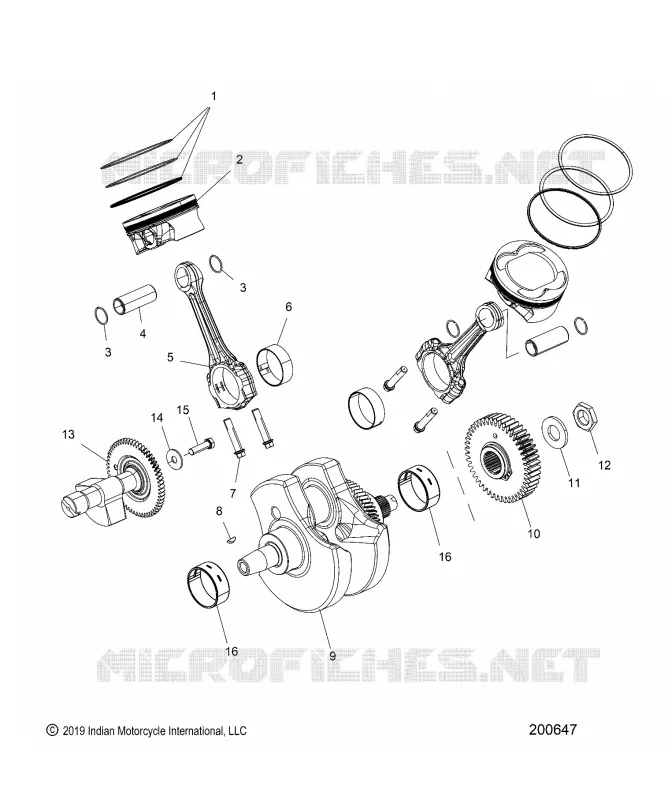

ENGINE, PISTON AND CRANKSHAFT
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
1
KIT RINGS PISTON (STANDARD)
2204733
£105,00 Unit Price incl. VAT
2
ASM. PISTON [INCL. RINGS PIN RET. RINGS]
3022488
£213,50 Unit Price incl. VAT
3
RING RETAINING
7710479
£10,14 Unit Price incl. VAT
4
PIN PISTON
3022291
£58,75 Unit Price incl. VAT
5
ASM. CONNECTING ROD [INCL. 7]
3023055
£353,95 Unit Price incl. VAT
6
BEARING-ROD 48X51X17 LD GRD 1
3515027-001
£24,48 Unit Price incl. VAT
6
BEARING-ROD 48X51X17 LD GRD 2
3515027-002
£24,48 Unit Price incl. VAT
6
BEARING-MAIN 48X51X17 LD GRD 3
3515027-003
£24,48 Unit Price incl. VAT
7
BOLT CONNECTING ROD
7520356
£29,38 Unit Price incl. VAT
8
KEY WOODRUFF
7721122
£10,14 Unit Price incl. VAT
9
ASM. CRANKSHAFT [INCL. 8]
3023558
£1 499,17 Unit Price incl. VAT
10
ASM GEAR CRANKSHAFT
1334616
£302,58 Unit Price incl. VAT
11
WASHER
7556518
£12,72 Unit Price incl. VAT
12
NUT
7547477
£19,58 Unit Price incl. VAT
13
ASM. BALANCE SHAFT
1205618
£276,30 Unit Price incl. VAT
14
WASHER
7556771
£12,72 Unit Price incl. VAT
15
SCREW
7518575
£29,38 Unit Price incl. VAT
16
BEARING-MAIN 56X60X23 UP GRD 2
3515065-002
Not Available
16
BEARING-MAIN 56X60X23 UP GRD 3
3515065-003
Not Available
16
BEARING-MAIN 56X60X23 UP GRD 1
3515065-001
Not Available
16
BEARING-MAIN 56X60X23 LW GRD 3
3515066-003
Not Available
16
BEARING-MAIN 56X60X23 LW GRD 1
3515066-001
Not Available
16
BEARING-MAIN 56X60X23 LW GRD 2
3515066-002
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
