REAR WHEEL, WHITE WALL, BOBBER TWENTY
5
Parts Diagram
Parts Catalog
WHEEL, FRONT, WHITE WALL, BOBBER TWENTY
by
DRIVE TRAIN, INPUT/OUTPUT SHAFT ASM.

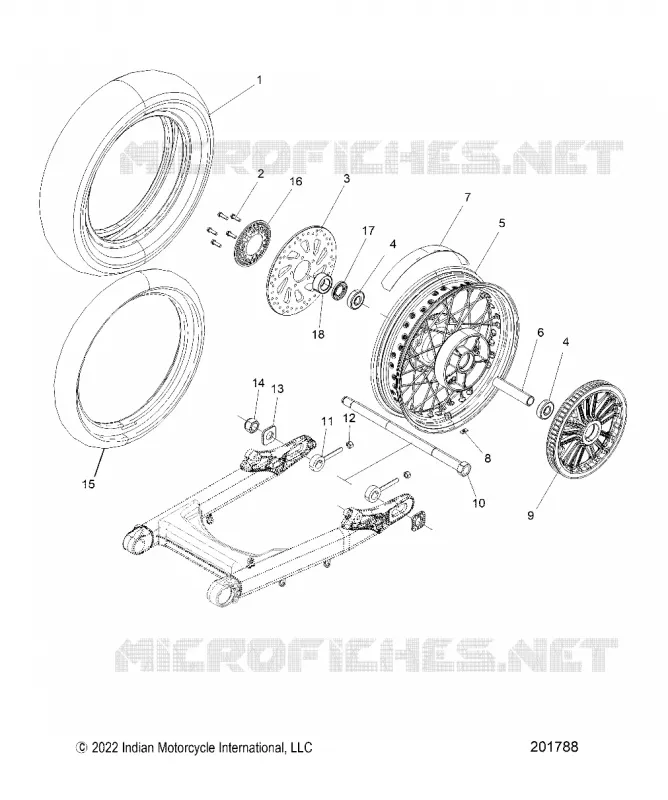

REAR WHEEL, WHITE WALL, BOBBER TWENTY
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
TIRE-REAR MT60RS 150/80-16 [INTL]
5416926
£237,87 Unit Price incl. VAT
2
SCR-HXFL M8X1.25X25 GEOMET
7521014
£2,18 Unit Price incl. VAT
3
ROTOR-BRK FLOAT FLAT BLK
1912961-266
£120,36 Unit Price incl. VAT
4
BEARING
3514405
£20,40 Unit Price incl. VAT
5
ASM-WHL WIRE RR 16X3.5 BLK [INCL. 4 6 7 17]
1522475-266
£527,59 Unit Price incl. VAT
6
SPACER
5337828
£24,48 Unit Price incl. VAT
7
STRAP-RIM 16#
5813714
£23,93 Unit Price incl. VAT
8
WEIGHT-STEEL 5G BLK
1525326
£6,57 Unit Price incl. VAT
9
SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]
-------
Not Available
10
AXLE REAR-FORGED MS
5916588
£74,57 Unit Price incl. VAT
11
ADJUSTER AXLE
5138890
£28,56 Unit Price incl. VAT
12
NUT
7547144
£4,37 Unit Price incl. VAT
13
PLATE INDICATOR ADJUSTMENT
5257889
£13,78 Unit Price incl. VAT
14
NUT FUJILOK
7547667
£36,72 Unit Price incl. VAT
15
TUBE-TIRE INNER
1823877
£130,82 Unit Price incl. VAT
16
RING TONE ABS [ABS MODELS ONLY]
5263961
£71,09 Unit Price incl. VAT
17
SEAL
3610094
£32,64 Unit Price incl. VAT
18
SPACER BEARING REAR LH
5631479
£4,37 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
