1
Engine displacement
1800
2
Year
2016
3
Trim
chieftain-chieftain-dark-horse-roadmaster
4
Parts Catalog
CHASSIS, FRAME ASM.
5
Parts Diagram
Parts Catalog
CHASSIS, FOOTPEG, PASSENGER, CHIEFTAIN
by
AUDIO SYSTEM

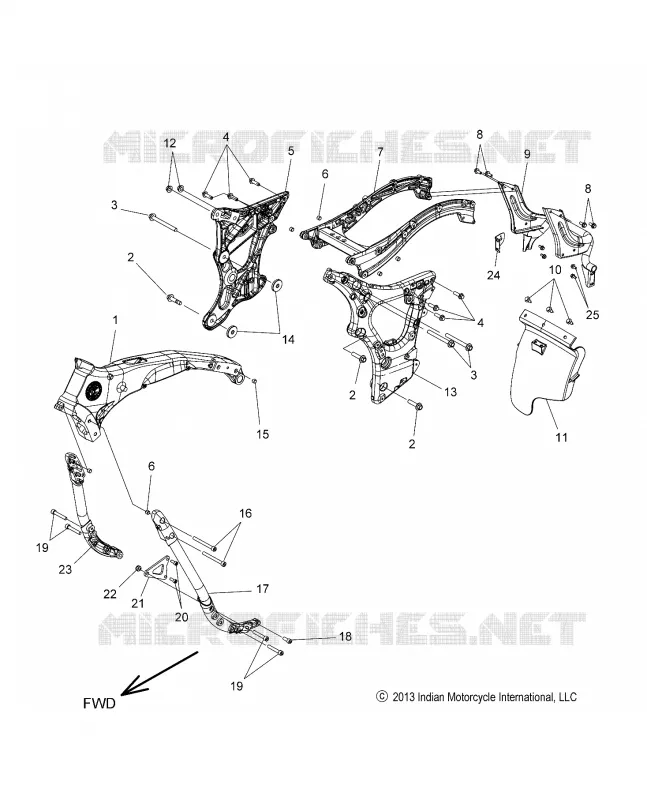

CHASSIS, FRAME ASM.
1
2
2
2
3
3
4
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
1
MAINFRAME FRONT TOUR 25 DEG. JBLK TO 3/15/21
5139999-626
5143586-626
£1 319,00 Unit Price incl. VAT
2
SCREW
7519845
£8,45 Unit Price incl. VAT
3
SCREW
7519794
£24,48 Unit Price incl. VAT
4
SCREW
7518334
£5,63 Unit Price incl. VAT
5
FRAME MID RH
5138129-329
5143588-329
£721,71 Unit Price incl. VAT
6
DOWEL HOLLOW
7663008
£5,63 Unit Price incl. VAT
7
SUBFRAME REAR
1019138
1024782
£816,28 Unit Price incl. VAT
8
SCREW
7517838
£5,46 Unit Price incl. VAT
9
FRAME REAR LOWER
1019383-329
1024636-329
£256,42 Unit Price incl. VAT
10
RIVET TUFLOK
7661855
£1,63 Unit Price incl. VAT
11
FLAP DEBRIS
5439852
Not Available
12
NUT
7547686
£5,63 Unit Price incl. VAT
13
FRAME MID LH
5138128-329
5143587-329
£756,55 Unit Price incl. VAT
14
SPACER FRAME
5138436
£7,51 Unit Price incl. VAT
15
DOWEL HOLLOW
7662129
£10,60 Unit Price incl. VAT
16
SCREW
7519793
£24,48 Unit Price incl. VAT
17
ASM. TUBE FRAME LH BLACK
1018969-626
1026128-626
£293,05 Unit Price incl. VAT
18
SCREW
7519890
£5,63 Unit Price incl. VAT
19
SCREW
7519843
£8,45 Unit Price incl. VAT
20
SCREW
7517410
£8,97 Unit Price incl. VAT
21
BRKT. ENGINE
5257184
£32,64 Unit Price incl. VAT
22
NUT
7547658
£2,18 Unit Price incl. VAT
23
ASM. TUBE FRAME RH BLACK
1018970-626
£293,05 Unit Price incl. VAT
24
BRKT. ANTENNA
5258057
£10,60 Unit Price incl. VAT
25
SCREW
7519005
£5,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
