1
Engine displacement
1800
2
Year
2018
3
Trim
CHIEFTAIN DARK HORSE
4
Parts Catalog
ELECTRICAL, COMPONENTS 1
5
Parts Diagram
Parts Catalog
REAR SUSPENSION ASM., SWING ARM AND SHOCK
by
ELECTRICAL, WIRE HARNESS

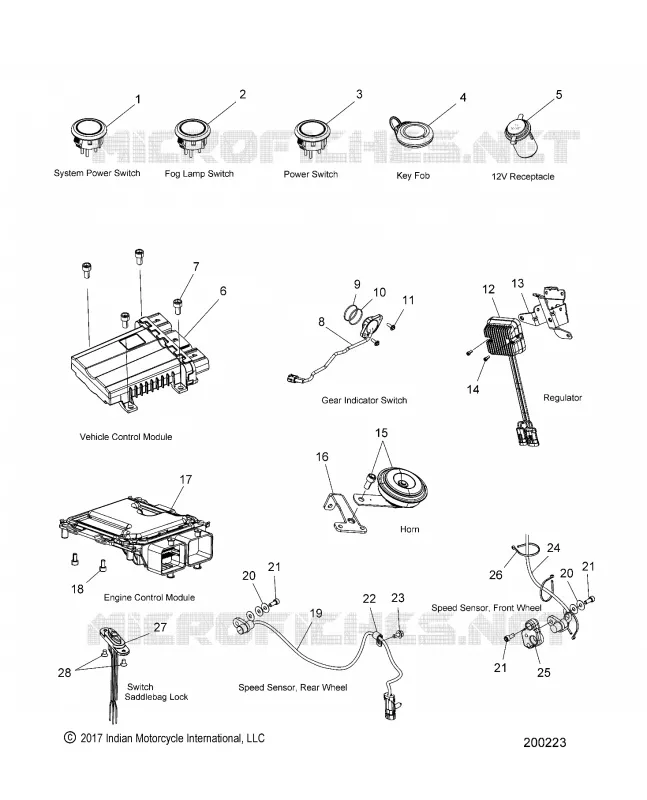

ELECTRICAL, COMPONENTS 1
1
2
1
4
5
6
15
8
9
10
11
12
13
14
15
16
17
18
19
20
20
14
14
14
22
23
24
25
26
27
28
1
SWITCH-POWER 38MM BLACK
4016998
£71,59 Unit Price incl. VAT
2
SWITCH FOG LONG BLACK (LDHRR)
4016999
£62,64 Unit Price incl. VAT
3
SWITCH-POWER 38MM BLACK
4016998
£71,59 Unit Price incl. VAT
4
REMOTE CONTROL FOB 2 BUTTON
4014121
4081321
£244,91 Unit Price incl. VAT
4
BATTERY KEY FOB
4014675
4081311
£14,88 Unit Price incl. VAT
4
K-FOB HOUSING 2 BTN (PLASTIC HOUSING ONLY)
2207317
2890127
£43,08 Unit Price incl. VAT
5
RECEPTACLE-POD MNT 12 VOLT
4012393
£50,27 Unit Price incl. VAT
6
ASM-VCM PROGRAMMED IND 9X [SVC][DEALER INSTALL REQUIRED]
2414229
2414503
£872,03 Unit Price incl. VAT
7
SCR-SH-M8X1.25X16 8.8 ZPB P30 [BOBBER TWENTY ONLY]
7517569
£6,76 Unit Price incl. VAT
8
SWITCH GEAR N-6 W/GROUND
4014718
4019238
£94,19 Unit Price incl. VAT
9
O-RING
5412530
£2,62 Unit Price incl. VAT
10
RING PARBAK-121
5450958
£9,91 Unit Price incl. VAT
11
SCREW
7519986
£6,76 Unit Price incl. VAT
12
REGULATOR VOLTAGE
4014300
4019661
£458,42 Unit Price incl. VAT
13
BRKT. VOLTAGE REGULATOR
5257637
£98,47 Unit Price incl. VAT
14
SCREW
7517272
£10,14 Unit Price incl. VAT
15
SCR-SH-M8X1.25X16 8.8 ZPB P30 [BOBBER TWENTY ONLY]
7517569
£6,76 Unit Price incl. VAT
15
HORN-DISK LOWTONE TVS MP280 60
4017620
Not Available
16
BRACKET HORN MOUNT
5264799
£29,38 Unit Price incl. VAT
17
ECM NO START ME17 [SVC]
4014125
£806,33 Unit Price incl. VAT
18
SCREW
7519851
£5,24 Unit Price incl. VAT
19
SENSOR WHEEL SPEED REAR [INTL. ONLY]
4014216
4081070
£282,59 Unit Price incl. VAT
20
SHIM SENSOR ABS [INTL. ONLY]
5255106
£9,61 Unit Price incl. VAT
21
SCREW
7517272
£10,14 Unit Price incl. VAT
22
CLAMP-REAR BRAKE
7080983
£6,55 Unit Price incl. VAT
23
SCREW HXFLG
7517704
£10,14 Unit Price incl. VAT
24
SENSOR WHEEL SPEED [INTL. ONLY]
4013251
4081069
£282,59 Unit Price incl. VAT
25
MOUNT SPEED SENSOR ABS
5632575
£39,17 Unit Price incl. VAT
26
PANDUIT STRAP
7080138
£2,84 Unit Price incl. VAT
27
SWITCH-SADDLEBAG LOCK V2
4017110
£98,47 Unit Price incl. VAT
28
SCREW
7519876
£6,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
