1
Engine displacement
1000
2
Year
2020
3
Trim
scout-bobber-sixty
4
Parts Catalog

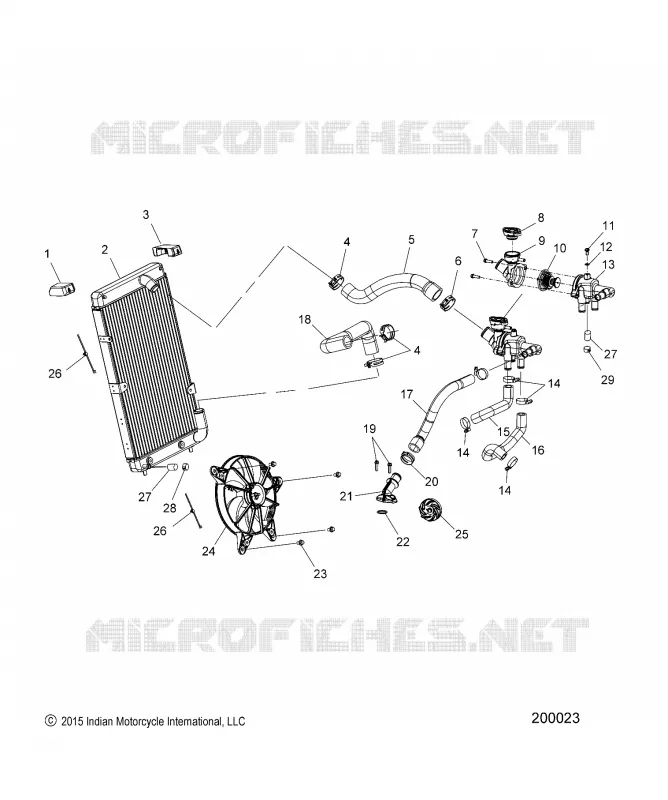

COOLING ASM.
5
Parts Diagram
Parts Catalog
REAR WHEEL
by
FRONT BRAKE ASM. (NON ABS)
COOLING ASM.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
1
MOUNT RADIATOR UPPER LH
5415296
£9,39 Unit Price incl. VAT
2
RADIATOR
1240902
1241391
£557,46 Unit Price incl. VAT
3
MOUNT RADIATOR UPPER RH
5415297
£9,39 Unit Price incl. VAT
4
CLAMP
7081977
£6,57 Unit Price incl. VAT
5
HOSE
5414845
£41,89 Unit Price incl. VAT
6
CLAMP
7082025
£6,57 Unit Price incl. VAT
7
SCREW
7518141
£5,63 Unit Price incl. VAT
8
CAP PRESSURE
1240797
£29,92 Unit Price incl. VAT
9
COVER THERMOSTAT
5453083
£71,09 Unit Price incl. VAT
10
THERMOSTAT
7052600
£59,84 Unit Price incl. VAT
11
SCREW BLEED
7517679
£13,87 Unit Price incl. VAT
12
WASHER FLAT
7555998
£1,63 Unit Price incl. VAT
13
ASM. HOUSING THERMOSTAT
1205889
£109,37 Unit Price incl. VAT
14
CLAMP BAND
7081976
£5,63 Unit Price incl. VAT
15
HOSE COOLANT FRONT HEAD OUT
5415371
£35,90 Unit Price incl. VAT
16
HOSE COOLANT REAR HEAD OUT
5415372
£41,89 Unit Price incl. VAT
17
HOSE BYPASS
5415373
£47,87 Unit Price incl. VAT
18
HOSE RADIATOR OUT
5414842
£53,86 Unit Price incl. VAT
19
SCREW
7520035
£5,63 Unit Price incl. VAT
20
CLAMP HOSE
7080842
£8,45 Unit Price incl. VAT
21
BY-PASS RETURN COOLANT
5451967
£41,89 Unit Price incl. VAT
22
O-RING
5413563
£2,18 Unit Price incl. VAT
23
SCREW
7517278
£6,57 Unit Price incl. VAT
24
ASM. FAN
2412703
£277,35 Unit Price incl. VAT
25
IMPELLER WATERPUMP
5138209
£29,92 Unit Price incl. VAT
26
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
27
PLUG OIL LINE
5415493
£5,46 Unit Price incl. VAT
28
CLAMP
7081533
£5,46 Unit Price incl. VAT
29
CLAMP
7082113
£5,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
