1
Engine displacement
1200
2
Year
2022
3
Trim
FTR 1200 CARBON
4
Parts Catalog
DRIVE TRAIN, CLUTCH AND RELATED
5
Parts Diagram
Parts Catalog
CONTROLS, CLUTCH LEVER ASM.
by
DRIVE TRAIN, INPUT AND OUTPUT SHAFTS

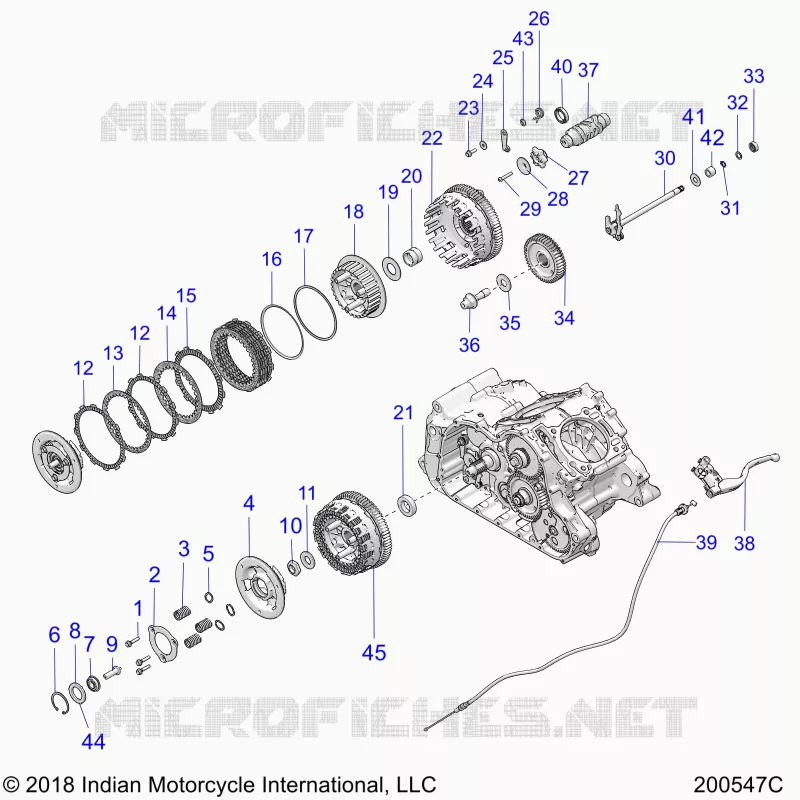

DRIVE TRAIN, CLUTCH AND RELATED
-
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
-
K-CLUTCH PACK [INCL. 12-15]
2208055
£722,70 Unit Price incl. VAT
1
SCR-HXFL-M6X1.0X30 8.8
7520820
Not Available
2
PLATE-STOPPER
5266812
Not Available
3
SPRING-CLUTCH 350N
7044950
£57,44 Unit Price incl. VAT
4
PLATE-PRESSURE CLUTCH
5141744
£175,82 Unit Price incl. VAT
5
SEAT-SPRING CLUTCH
5262709
£16,54 Unit Price incl. VAT
6
RING RETAINING INTERNAL
7710651
£2,62 Unit Price incl. VAT
7
BEARING BALL
3514683
Not Available
8
PLATE CLUTCH LIFTER
5137169
Not Available
9
SHAFT-CLUTCH LIFTER
6231087
Not Available
10
NUT
7547477
£19,58 Unit Price incl. VAT
11
WASHER
7556518
£12,72 Unit Price incl. VAT
12
CLUTCH-FRICTION B
1323373
£64,63 Unit Price incl. VAT
13
CLUTCH-SEPARATOR B
5262708
£64,63 Unit Price incl. VAT
14
DISK-SEPERATOR CLUTCH 2MM
5266898
£64,63 Unit Price incl. VAT
15
DISK-FRICTION A
1323512
£64,63 Unit Price incl. VAT
16
SPRING JUDDER CLUTCH
7044118
£85,31 Unit Price incl. VAT
17
SEAT JUDDER SPRING
5258192
£50,27 Unit Price incl. VAT
18
HUB-INNER CLUTCH
5141743
Not Available
19
WASHER CLUTCH
7556798
£50,27 Unit Price incl. VAT
20
COLLAR BEARING
5138940
£62,64 Unit Price incl. VAT
21
SPACER CLUTCH
5138726
£29,38 Unit Price incl. VAT
22
ASM. BASKET-OUTER CLUTCH
1334409
£961,62 Unit Price incl. VAT
23
SCREW
7518141
£6,76 Unit Price incl. VAT
24
WASHER
7556054
£12,72 Unit Price incl. VAT
25
ASM. ROLLER FOLLOWER
1333426
£50,27 Unit Price incl. VAT
26
SPRING-TORSION LH DETENT
7045544
£13,52 Unit Price incl. VAT
27
STAR SHIFTER
5137944
£131,24 Unit Price incl. VAT
28
WASHER STAR
7556749
£12,72 Unit Price incl. VAT
29
SCREW
7520597
£6,55 Unit Price incl. VAT
30
ASM. SHIFTER RATCHET [INCL. 19-21]
1333461
£91,87 Unit Price incl. VAT
31
RING RETAINING
7710645
£1,96 Unit Price incl. VAT
32
WASHER
7555977
£10,14 Unit Price incl. VAT
33
SEAL SHAFT
3610154
£11,27 Unit Price incl. VAT
34
ASM. GEAR CRANKSHAFT [INCL. 16 17]
1333532
1334616
£302,58 Unit Price incl. VAT
35
WASHER-FLAT ISO7415-M17 HARD
7557088
Not Available
36
SPUD-CENTERFEED CRANKSHAFT
5141636
£71,59 Unit Price incl. VAT
37
ASM-SHIFT DRUM 6-SPEED
1334511
£156,98 Unit Price incl. VAT
38
ASM. CLUTCH BRKT LEVER BLK [SEE #CONTROLS CLUTCH LEVER ASM.#]
1323721-463
£242,46 Unit Price incl. VAT
39
CABLE-CLUTCH 8MM
7082358
£97,49 Unit Price incl. VAT
40
BEARING BALL
3513511
£34,27 Unit Price incl. VAT
41
WASHER
7556748
£10,14 Unit Price incl. VAT
42
SPACER SPRING RATCHET
5138274
£11,75 Unit Price incl. VAT
43
WASHER PILOT
7556780
£29,38 Unit Price incl. VAT
44
ASM-CLUTCH LIFTER [INCL. 7 8]
1205702
£85,31 Unit Price incl. VAT
45
ASM. CLUTCH [INCL. 1-5 12-20 22]
1334408
£1 564,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
