1
Engine displacement
1900
2
Year
2020
3
Trim
chieftain-116-titanium-smoke
4
Parts Catalog

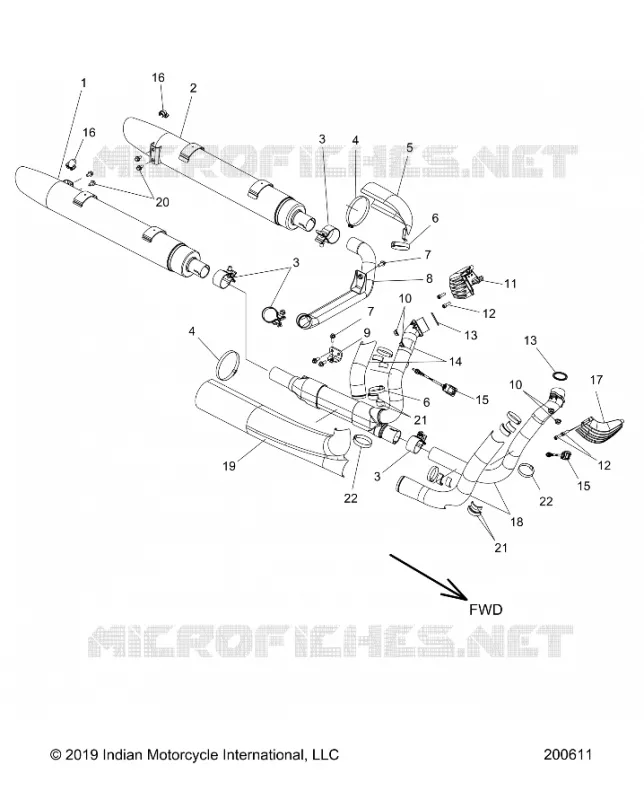

EXHAUST
5
Parts Diagram
Parts Catalog
STARTER MOTOR
by
FRONT WHEEL
EXHAUST
1
2
3
3
3
4
4
5
6
6
7
7
8
9
10
10
11
12
12
13
13
14
15
15
16
16
17
18
19
20
21
21
22
22
1
MUFFLER STAGE 0 RH CHROME
1263260-156
£518,09 Unit Price incl. VAT
2
MUFFLER STAGE 0 LH CHROME
1263259-156
£518,09 Unit Price incl. VAT
3
CLAMP EXHAUST SS
7081179
£41,01 Unit Price incl. VAT
4
CLAMP-WORM DRIVE 4.00 DIA
7082311
£6,57 Unit Price incl. VAT
5
SHIELD TRANSITION LH CHROME
1262397-156
£282,59 Unit Price incl. VAT
6
CLAMP-WORM DRIVE 2.25 DIA
7082310
£5,63 Unit Price incl. VAT
7
SCREW
7519936
£2,18 Unit Price incl. VAT
8
ASM. EXHAUST CROSSOVER TUBE CHROME
1262341-156
£397,72 Unit Price incl. VAT
9
BRKT. EXHAUST MOUNT
5257155
5270741
£28,56 Unit Price incl. VAT
10
NUT
7547014
£8,45 Unit Price incl. VAT
11
ASM. EXHAUST COVER REAR [WITH DOWEL PINS]
3022666
Not Available
12
SCREW
7517305
£5,63 Unit Price incl. VAT
13
GASKET EXHAUST
5257156
£13,87 Unit Price incl. VAT
14
SHIELD HEADPIPE REAR
1263145-156
£225,02 Unit Price incl. VAT
14
ASM. HEADPIPE REAR CHROME
1263130-156
Not Available
14
ASM. HEADPIPE REAR EU CHROME [INTL]
1263131-156
1263789-156
£1 055,20 Unit Price incl. VAT
15
SENSOR OXYGEN
4016021
£204,09 Unit Price incl. VAT
16
PLUG FRAME
5450652
£6,57 Unit Price incl. VAT
17
ASM. EXHAUST COVER FRONT [WITH DOWEL PINS]
3022665
Not Available
18
SHIELD HEADPIPE FRONT CHROME
1263146-156
£361,09 Unit Price incl. VAT
18
ASM. HEADPIPE FRONT CHROME
1263129-156
Not Available
19
SHIELD TRANSITION RH CHROME
1262531-156
£361,09 Unit Price incl. VAT
20
SCREW
7519005
£5,46 Unit Price incl. VAT
21
PAD-INSULATION HEAT SHIELD (QTY. 3 FRONT QTY. 2 REAR)
1262777
£41,89 Unit Price incl. VAT
21
PAD-INSULATION LRG HEAT SHIELD (QTY. 3 FRONT QTY. 2 REAR)
5814354
Not Available
22
CLAMP-HEAT SHIELD EXHAUST [QTY. 3 FRONT QTY. 2 REAR]
7081156
£8,45 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
