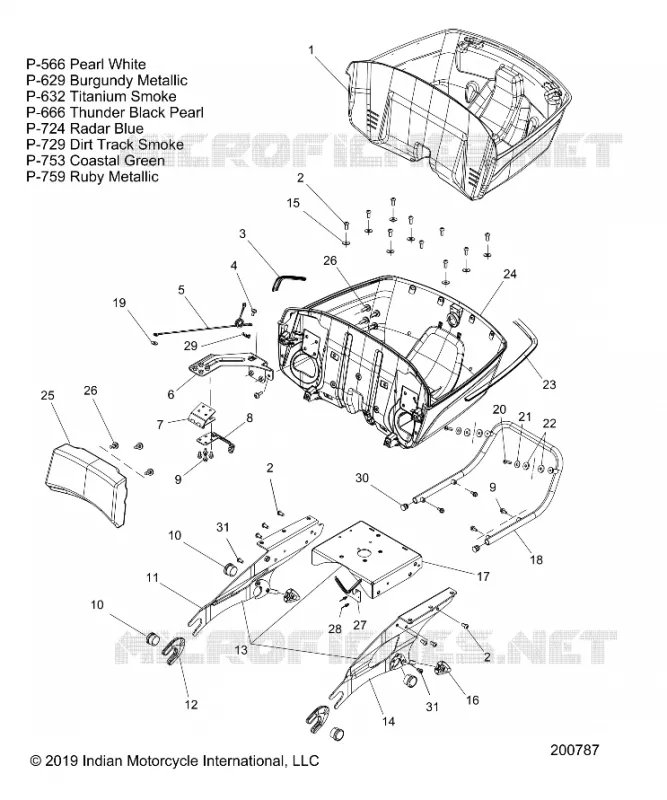

TRUNK BASE MOUNTING ASM.
1
2
2
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
21
20
21
22
23
24
25
26
26
27
28
29
30
31
31
1
LINER-TRUNK
2689678
£319,22 Unit Price incl. VAT
2
SCREW-TXBH-M8X1.25X20 8.8 ZPC
7520127
£6,57 Unit Price incl. VAT
3
SEAL TRUNK SHORT
5415311
£32,64 Unit Price incl. VAT
4
SCREW-HXBH-M6X1.0X10 ZPC
7520201
£10,60 Unit Price incl. VAT
5
CABLE TRUNK LID
7082053
£36,72 Unit Price incl. VAT
6
BRKT. HINGE SUPP. UPPER LH
5260396
£48,47 Unit Price incl. VAT
6
BRKT. HINGE SUPP. UPPER RH
5260397
£48,47 Unit Price incl. VAT
7
ASM. HINGE TRUNK
2636843
£92,97 Unit Price incl. VAT
8
BRKT. HINGE LOWER RH
5260328
£28,56 Unit Price incl. VAT
8
BRKT. HINGE LOWER LH
5260327
£28,56 Unit Price incl. VAT
9
SCREW
7520143
£5,46 Unit Price incl. VAT
10
BUSHING-SPOOL TRUNK
5455069
£5,46 Unit Price incl. VAT
11
ASM. TRUNK SIDE PLATE RH CHROME (INCL. 25 27)
1023921-156
£251,19 Unit Price incl. VAT
12
ISOLATOR FRONT
5414784
£7,51 Unit Price incl. VAT
13
ASM. TRUNK FRAME CHR (INCL. 13 (QTY 8) 15 (QTY 4) 20-32)
1020560-156
£547,50 Unit Price incl. VAT
14
ASM. TRUNK SIDE PLATE LH CHROME (INCL. 24 25)
1023920-156
£251,19 Unit Price incl. VAT
15
WASHER-M8 FW STL 2Y DIN 9021B
7556459
£2,18 Unit Price incl. VAT
16
GRIP LOCK LEVER
5414785
£14,35 Unit Price incl. VAT
17
SUPPORT TRUNK CENTER FLAT BLACK
5139657-463
£85,63 Unit Price incl. VAT
18
BUMPER TRUNK CHROME
1023874-156
£167,46 Unit Price incl. VAT
19
WASHER
7556064
£5,63 Unit Price incl. VAT
20
SCREW HXBH
7517782
£5,63 Unit Price incl. VAT
22
WASHER RUBBER
5814206
£5,46 Unit Price incl. VAT
23
SEAL TRUNK LONG
5415238
£36,72 Unit Price incl. VAT
24
BIN-TRUNK IND TTSMK
5455392-632
£895,92 Unit Price incl. VAT
24
BIN-TRUNK IND BRGNDY
5455392-629
£1 020,35 Unit Price incl. VAT
24
BIN-TRUNK IND BLK PRL
5455392-666
£895,92 Unit Price incl. VAT
24
BIN-TRUNK IND PWHT
5455392-566
£1 020,35 Unit Price incl. VAT
24
BIN-TRUNK IND SNDSMETSMK
5455392-729
£1 020,35 Unit Price incl. VAT
24
BIN-TRUNK IND RDRBLU
5455392-724
£895,92 Unit Price incl. VAT
24
BIN-TRUNK IND CSTLGRN
5455392-753
£895,92 Unit Price incl. VAT
24
BIN-TRUNK IND RUBYMET
5455392-759
£1 020,35 Unit Price incl. VAT
25
ASM-BACKREST LWR TRUNK BLK
2687306-01
£334,92 Unit Price incl. VAT
25
ASM. BACKREST LWR TAN
2687306-05
£334,92 Unit Price incl. VAT
26
SCREW-HXBH-M6X1.0X15 ZPB
7520171
£6,57 Unit Price incl. VAT
27
ASM. WIRE RETAINER
1021111
Not Available
28
RIVET (10)SS
7621235
£1,63 Unit Price incl. VAT
29
BRKT. LANYARD LH
5260463
£28,56 Unit Price incl. VAT
29
BRKT. LANYARD RH
5260464
£28,56 Unit Price incl. VAT
30
CAP-TUBING CHROME
5259230-156
£13,16 Unit Price incl. VAT
31
SCREW
7519000
£3,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
