1
Engine displacement
1100
2
Year
2016
3
Trim
scout
4
Parts Catalog

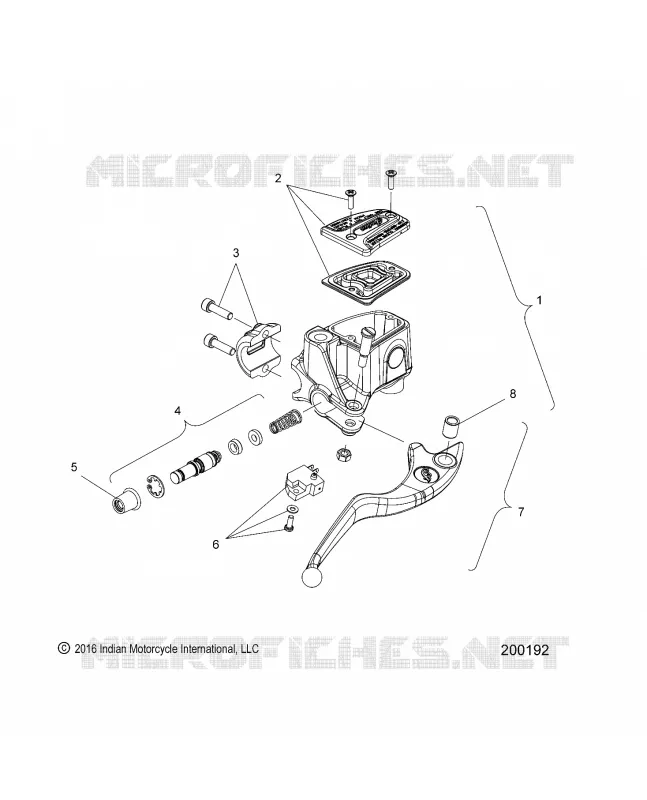

BRAKES, MASTER CYL., FRONT
5
Parts Diagram
Parts Catalog
UPPER AND LOWER STEERING CLAMPS
by
BRAKES, MASTER CYL., REAR
BRAKES, MASTER CYL., FRONT
1
2
3
4
5
6
7
8
1
ASM. MASTER CYLINDER HNDLBR BLK [INCL. 2-8]
1912415-658
1912523-658
£408,19 Unit Price incl. VAT
2
KIT COVER GASKET [INCL. COVER GASKET SCREWS]
2205840
1912523-658
£408,19 Unit Price incl. VAT
3
KIT CLAMP [INCL. SCREWS]
2205841
1912523-658
£408,19 Unit Price incl. VAT
4
KIT REBUILD SEALS FRMC [INCL. BOOT]
2205845
1912523-658
£408,19 Unit Price incl. VAT
5
KIT DUST BOOT [ALSO INCL. SNAP RING]
2205846
1912523-658
£408,19 Unit Price incl. VAT
6
KIT SWITCH [INCL. SCREW AND WASHER]
2205844
1912523-658
£408,19 Unit Price incl. VAT
7
KIT LEVER FRMC [INCL. LEVER BUSHING PIVOT PIN NUT]
2205842
1912523-658
£408,19 Unit Price incl. VAT
8
KIT PIVOT BUSHING [INCL. BUSHING PIVOT PIN AND NUT]
2205843
1912523-658
£408,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
