1
Engine displacement
1100
2
Year
2022
3
Trim
scout-1200
4
Parts Catalog
CHASSIS, FRAME
5
Parts Diagram
Parts Catalog
SIDE COVERS, IGN./THERMOSTAT (SOME MODELS)
by
CHASSIS, SIDE STAND

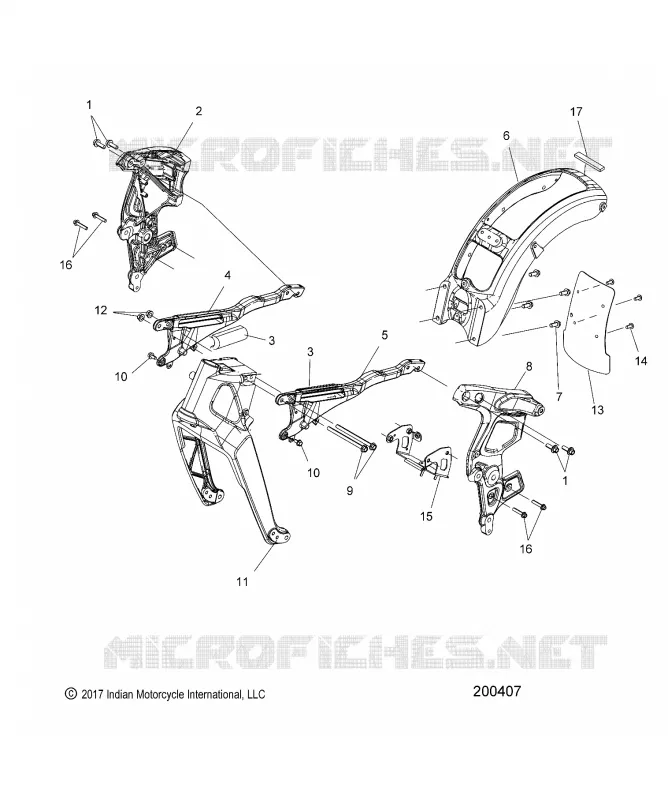

CHASSIS, FRAME
1
2
3
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
16
17
1
SCREW
7520148
£10,60 Unit Price incl. VAT
2
FRAME MID RH JT BLK [SEE INSIDE FRAME FOR CORRECT P/N]
5141434-626
£507,62 Unit Price incl. VAT
3
FOAM AIRBOX/FRAME
5522047
£6,41 Unit Price incl. VAT
4
BACKBONE-CAST RH ECOAT [FROM 4/14/22]
5633875-329
£188,39 Unit Price incl. VAT
4
BACKBONE-CAST RH WRNKL BLK [TO 4/14/22]
5633875-626
£198,86 Unit Price incl. VAT
5
BACKBONE-CAST LH ECOAT [FROM 4/14/22]
5633874-329
£188,39 Unit Price incl. VAT
5
BACKBONE-CAST LH WRNKL BLK [TO 4/14/22]
5633874-626
£198,86 Unit Price incl. VAT
6
FRAME SUBFRAME REAR JT BLK TX
5138838-626
£444,82 Unit Price incl. VAT
7
SCREW
7518908
£2,18 Unit Price incl. VAT
8
FRAME MID LH JT BLK [SEE INSIDE FRAME FOR CORRECT P/N]
5141433-626
£444,82 Unit Price incl. VAT
9
SCREW
7519954
£28,56 Unit Price incl. VAT
10
SCREW
7519936
£2,18 Unit Price incl. VAT
11
FRAME FRONT I JT BLK TX
5139652-626
£1 433,48 Unit Price incl. VAT
12
NUT
7547017
£6,57 Unit Price incl. VAT
13
FLAP DEBRIS
5451772
£29,92 Unit Price incl. VAT
14
RIVET
7621435
£1,63 Unit Price incl. VAT
15
BRKT-REGULATOR VOLTAGE
5267510
£52,20 Unit Price incl. VAT
16
SCREW
7519779
£3,27 Unit Price incl. VAT
17
GASKET STRIP FOAM
5814155
£1,63 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
