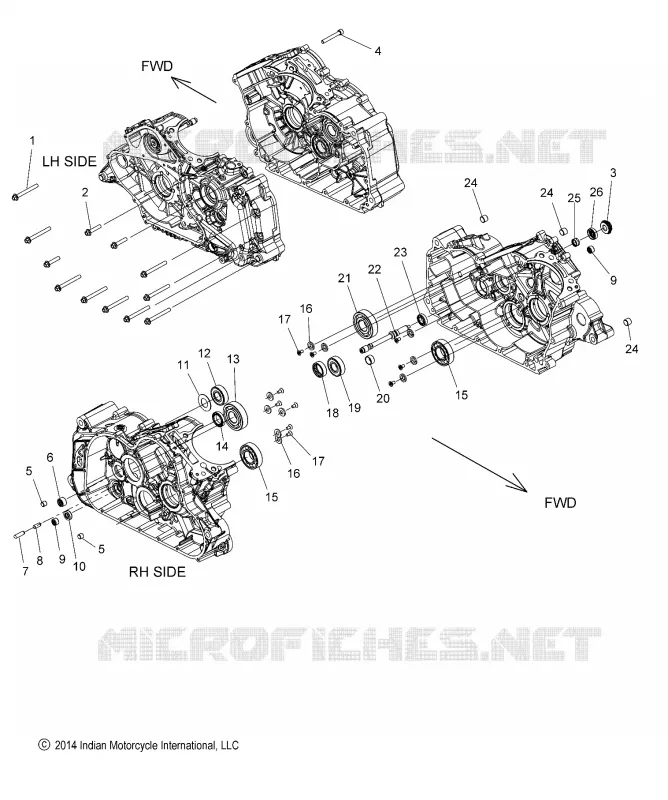

CRANKCASE ASM. FOR SCOUT 1200 FROM 2022

CRANKCASE ASM.

-

ASM-CRANKCASE COMPLETE CB BLK [INCL. 1-26]

1206263-657

£2 588,23 Unit Price incl. VAT

1

SCR-HXFL-M8X1.25X75 10.9 ZPC

7519948

£5,46 Unit Price incl. VAT

2

SCREW

7519947

£6,57 Unit Price incl. VAT

3

SEAL WP SHAFT

3610173

£55,93 Unit Price incl. VAT

4

SCREW

7520093

£10,60 Unit Price incl. VAT

5

DOWEL HOLLOW

7663005

£5,63 Unit Price incl. VAT

6

BEARING-NDL 14X20X12

3515832

£16,32 Unit Price incl. VAT

7

PIN SOLID M8x36

7662360

£28,56 Unit Price incl. VAT

8

PIN SOLID M8x24

7662359

£24,48 Unit Price incl. VAT

9

BEARING NDL M12X16X10 CLTSHF

3552105

£20,40 Unit Price incl. VAT

10

SEAL SHAFT

3610154

£9,39 Unit Price incl. VAT

11

PLATE OIL DEFLECTOR

5259394

£8,26 Unit Price incl. VAT

12

BEARING

3514860

£28,56 Unit Price incl. VAT

13

BEARING BALL

3514884

£32,64 Unit Price incl. VAT

14

BEARING BALL

3513511

£28,56 Unit Price incl. VAT

15

BEARING BALL

3514886

£20,40 Unit Price incl. VAT

16

PLATE BEARING RETAINER

5138188

£5,63 Unit Price incl. VAT

17

SCREW

7517598

£10,60 Unit Price incl. VAT

18

BRG-NDL 30X37X12-30BTM3712

3515834

£24,48 Unit Price incl. VAT

19

BRG-BALL 6204 C3 ZZ 20X47X14

3515833

£20,40 Unit Price incl. VAT

20

BEARING CAM IDLER

3514820

£32,64 Unit Price incl. VAT

21

BEARING-BALL 6306 C3 30X72X19

3515836

£20,40 Unit Price incl. VAT

22

SHAFT WATER PUMP

5138723

£53,86 Unit Price incl. VAT

23

BEARING BALL WP SHAFT

3514878

£28,56 Unit Price incl. VAT

24

DOWEL HOLLOW

7662129

£10,60 Unit Price incl. VAT

25

NUT SPECIAL

7547688

Not Available

26

SEAL SHAFT

3610228

£16,32 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
