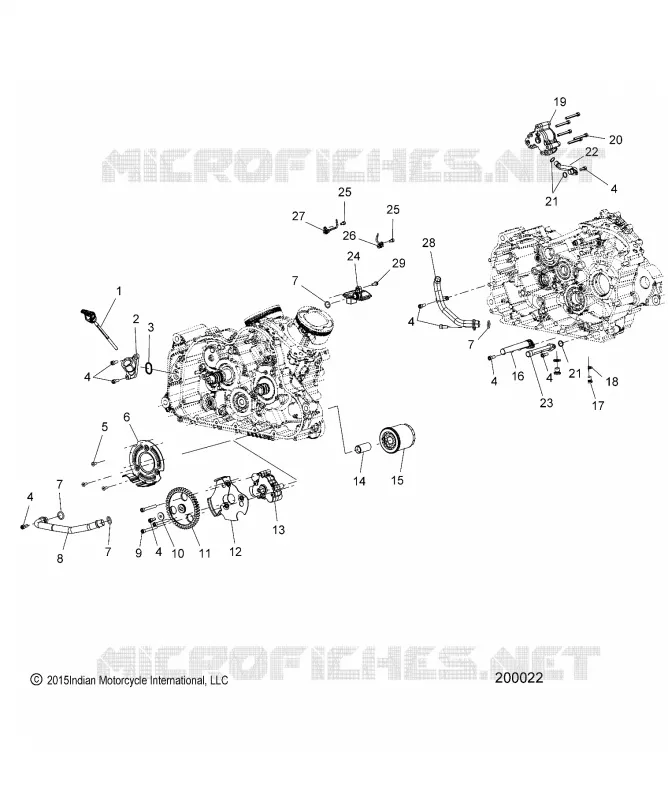

ENGINE, OIL SYSTEM
1
2
3
4
4
4
4
4
4
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
25
26
27
28
29
1
DIPSTICK
5451846
£38,08 Unit Price incl. VAT
2
ADAPTER DIPSTICK CB BLACK
5139173-657
Not Available
3
SEAL DIPSTICK ADAPTER
5415005
£5,63 Unit Price incl. VAT
4
SCREW
7517272
£8,45 Unit Price incl. VAT
5
SCREW
7518817
£5,46 Unit Price incl. VAT
6
SHIELD GEAR CLUTCH
5258759
£47,87 Unit Price incl. VAT
7
O-RING
5413837
£5,63 Unit Price incl. VAT
8
TUBE PRESSURE OIL INLET
2521510
£71,09 Unit Price incl. VAT
9
SCREW
7518348
£5,63 Unit Price incl. VAT
10
WASHER
7556054
£10,60 Unit Price incl. VAT
11
GEAR OIL PUMP
5451819
£38,08 Unit Price incl. VAT
12
SHIELD GEAR OIL PUMP
5258842
£35,90 Unit Price incl. VAT
13
ASM. OIL PUMP [INCL. 4 10 11 12]
1205311
£167,46 Unit Price incl. VAT
14
NIPPLE OIL FILTER
2521388
£28,56 Unit Price incl. VAT
15
FILTER OIL
2520799
£12,11 Unit Price incl. VAT
16
SCREEN OIL INLET SCAVENGE
2521285
£54,41 Unit Price incl. VAT
17
PLUG
7052306
£21,54 Unit Price incl. VAT
18
WASHER
5812232
£3,05 Unit Price incl. VAT
19
ASM. OIL PUMP DUAL SCAVENGE
1205329
£156,99 Unit Price incl. VAT
20
SCREW
7517270
£5,46 Unit Price incl. VAT
21
O-RING
5414100
£1,24 Unit Price incl. VAT
22
TUBE SCAVENGE INLET
2521479
£59,84 Unit Price incl. VAT
23
PICKUP SCAVENGE
2521480
£54,41 Unit Price incl. VAT
24
ASM. OIL PICKUP
2521505
£38,08 Unit Price incl. VAT
25
SCREW
7517847
£4,37 Unit Price incl. VAT
26
ASM. PISTON COOLING JET FRONT
1205134
£53,86 Unit Price incl. VAT
27
ASM. PISTON COOLING JET REAR
1205135
£53,86 Unit Price incl. VAT
28
TUBE SCAVENGE OIL RETURN
2521384
£65,62 Unit Price incl. VAT
29
SCREW
7520179
£6,57 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
