ELECTRICAL, COMPONENTS FOR SCOUT BOBBER FROM 2019

ELECTRICAL, COMPONENTS

-

ASM. CRANKCASE COMPLETE BLACK [INCL. 1-12]

1205044

£3 235,29 Unit Price incl. VAT

1

SCREW

7519939

£5,46 Unit Price incl. VAT

1

BEARING BALL

3514763

£40,80 Unit Price incl. VAT

1

CUBE SWITCH LH

4014449

£239,06 Unit Price incl. VAT

2

RETAINER BEARING

5138442

£43,52 Unit Price incl. VAT

2

CUBE SWITCH RH

4014450

£239,06 Unit Price incl. VAT

3

BEARING BALL

3514784

£16,32 Unit Price incl. VAT

3

SWITCH GEAR INDICATOR N/OD

4013956

£44,74 Unit Price incl. VAT

4

BEARING BALL

3513511

£28,56 Unit Price incl. VAT

4

SCREW

7518338

£5,63 Unit Price incl. VAT

5

BEARING BALL

3514764

£41,01 Unit Price incl. VAT

5

O-RING

5412530

£2,18 Unit Price incl. VAT

6

SENSOR THERMISTER

4010644

£92,97 Unit Price incl. VAT

6

SCREW

7517255

£8,45 Unit Price incl. VAT

7

SENSOR VEHICLE SPEED

4011884

£235,49 Unit Price incl. VAT

7

RETAINER BEARING

5137937

£24,48 Unit Price incl. VAT

8

BEARING BALL

3514766

£103,47 Unit Price incl. VAT

8

SCREW

7517750

£10,60 Unit Price incl. VAT

9

BEARING BALL

3514477

£41,01 Unit Price incl. VAT

9

MODULE LOAD/TIP OVER

4017165

£230,25 Unit Price incl. VAT

10

REGULATOR 3PH

4012941

£282,59 Unit Price incl. VAT

10

BEARING BALL

3514751

£20,40 Unit Price incl. VAT

11

NUT

7710495

£5,63 Unit Price incl. VAT

11

PLATE-BEARING RETAINER BS

5138480

£32,64 Unit Price incl. VAT

12

HORN TRUMPET LOW TONE

4015254

£76,56 Unit Price incl. VAT

13

SCR-SH-M8X1.25X16 8.8 ZPC

7519894

£5,63 Unit Price incl. VAT

14

ECM NO START ME17 [SVC]

4014125

£671,94 Unit Price incl. VAT

15

MOUNT ECM

5451843

£28,56 Unit Price incl. VAT

16

SWITCH OIL PRESSURE

4012668

£36,72 Unit Price incl. VAT

17

SENSOR OXYGEN

4016021

£204,09 Unit Price incl. VAT

18

SENSOR T-MAP

2411528

£115,12 Unit Price incl. VAT

19

SCREW

7517277

£4,37 Unit Price incl. VAT

20

SENSOR CRANK POSITION

4015068

£136,06 Unit Price incl. VAT

21

SCREW

7517272

£8,45 Unit Price incl. VAT

22

SOLENOID

4012017

£98,44 Unit Price incl. VAT

23

SWITCH SIDE STAND PLUNGER [INTL. ONLY]

4014289

£55,93 Unit Price incl. VAT

24

SCREW [INTL. ONLY]

7516610

£5,46 Unit Price incl. VAT

25

SENSOR WHEEL SPEED [INTL. ONLY]

4013251

£235,49 Unit Price incl. VAT

26

SENSOR WHEEL SPEED REAR [INTL. ONLY]

4014216

£235,49 Unit Price incl. VAT

27

PANDUIT STRAP

7080138

£2,37 Unit Price incl. VAT

28

SHIM SENSOR ABS [INTL. ONLY]

5255106

£8,01 Unit Price incl. VAT

29

MODULE-USB

2414051

£115,12 Unit Price incl. VAT

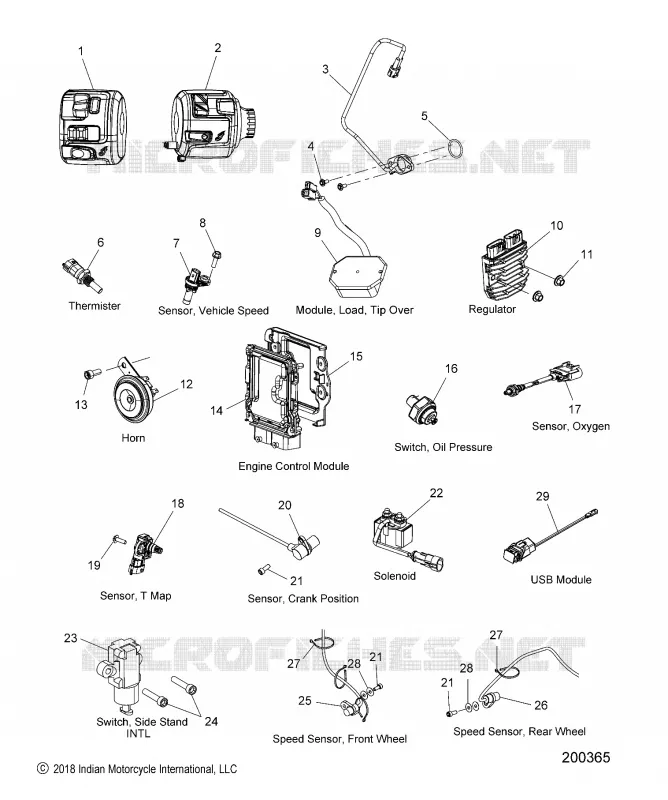

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
