1
Engine displacement
1100
2
Year
2018
3
Trim
scout-bobber
4
Parts Catalog
FUEL SYSTEM, EVAP SYSTEM, CALI./INTL
5

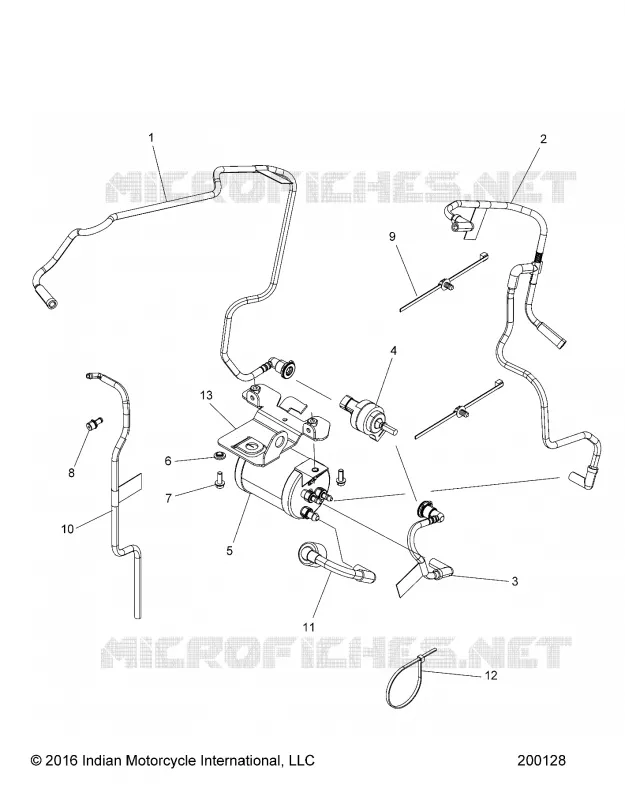

Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL TANK MOUNTING
by
ENGINE, AIR INTAKE
FUEL SYSTEM, EVAP SYSTEM, CALI./INTL
1
2
3
4
5
6
7
8
9
10
11
12
13
1
LINE PURGE TO TB
5451674
£59,84 Unit Price incl. VAT
2
LINE VENT TO CANISTER
5450691
£71,09 Unit Price incl. VAT
3
LINE CANISTER TO PURGE
5450692
£35,90 Unit Price incl. VAT
4
VALVE CANISTER PURGE
4011303
£64,63 Unit Price incl. VAT
5
FILTER ACTIVATED CHARCOAL
2521752
£107,04 Unit Price incl. VAT
6
BUSHING CARBON CAN
5139063
£7,51 Unit Price incl. VAT
7
SCREW
7518803
£5,46 Unit Price incl. VAT
8
FITTING EVAP LINE
5138799
£15,55 Unit Price incl. VAT
9
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
10
LINE WATER/VENT TO GRND
5453068
£41,89 Unit Price incl. VAT
11
TUBE-VENT CANISTER
5453432
£41,89 Unit Price incl. VAT
12
PANDUIT STRAP
7080138
£2,37 Unit Price incl. VAT
13
ASM-BRKT MNT LWR
1022286
£32,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
