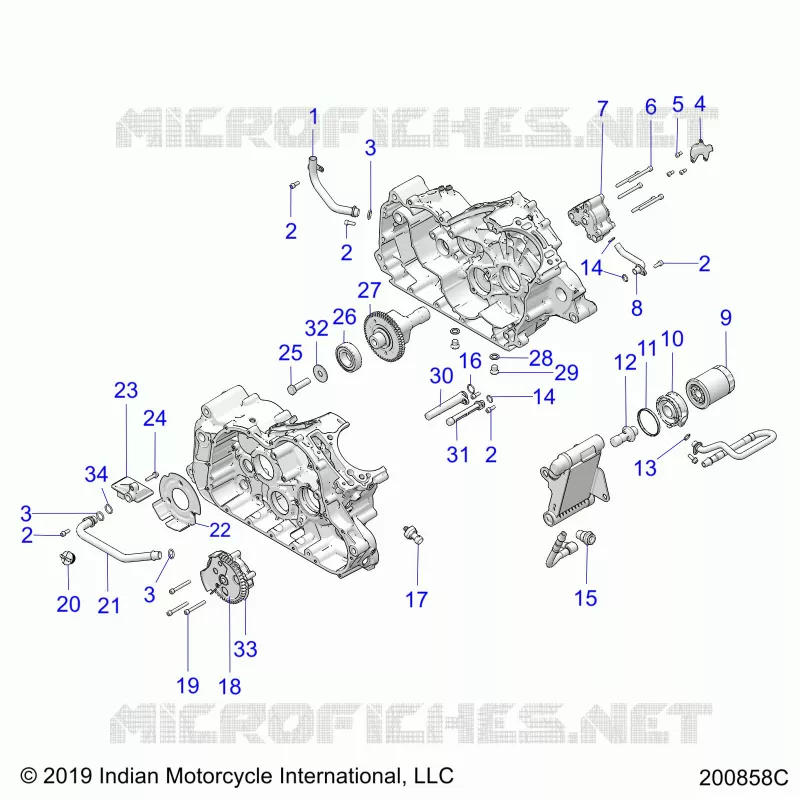

TUBE-SCAVENGE OIL RETURN
2521915
£104,66 Unit Price incl. VAT
2
SCR-SH-M6X1.0X15 10.9 ZPC D204
7517775
£5,63 Unit Price incl. VAT
3
O-RING
5413837
£5,63 Unit Price incl. VAT
4
CLIP STATOR WIRE
5258718
£10,60 Unit Price incl. VAT
5
SCREW
7517847
£4,37 Unit Price incl. VAT
6
SCREW
7517270
£5,46 Unit Price incl. VAT
7
ASM. OIL PUMP DUAL SCAVENGE
1205329
£156,99 Unit Price incl. VAT
8
TUBE-SCAVENGE INLET
2522090
£59,84 Unit Price incl. VAT
9
FILTER-OIL (10 MICRON)
2540086
£12,11 Unit Price incl. VAT
10
ADAPTER-OIL FILTER
5141707
Not Available
11
SEAL-ADAPTER OIL FILTER
5416476
Not Available
12
SPIGOT-ADAPTER OIL FILTER
5141706
£43,52 Unit Price incl. VAT
13
O-RING-12.4X1.78 0600083
5412688
£4,91 Unit Price incl. VAT
14
O-RING
5414100
£1,24 Unit Price incl. VAT
15
E-CLIP QUICKCONNECT
5342231
Not Available
15
FITTING-QC OIL
2522106
£48,96 Unit Price incl. VAT
16
O-RING -017
5414596
£2,73 Unit Price incl. VAT
17
SENSOR-OIL PRESSURE
4018558
£109,89 Unit Price incl. VAT
18
ASM. OIL PUMP [INCL. 4 5 11 12]
1205470
£167,46 Unit Price incl. VAT
19
SCREW
7518348
£5,63 Unit Price incl. VAT
20
PLUG-OIL FILL
5454415
£11,27 Unit Price incl. VAT
21
TUBE PRESSURE OIL INLET
2521510
£71,09 Unit Price incl. VAT
23
ASM. OIL PICKUP
2521826
£38,08 Unit Price incl. VAT
24
SCREW
7520179
£6,57 Unit Price incl. VAT
25
SCREW
7518575
£24,48 Unit Price incl. VAT
26
BEARING BALL
3514886
£20,40 Unit Price incl. VAT
27
ASM-BALANCE SHAFT
1205739
Not Available
28
WASHER
5812232
£3,05 Unit Price incl. VAT
29
PLUG
7052306
£21,54 Unit Price incl. VAT
30
SCREEN OIL INLET SCAVENGE
2521285
£54,41 Unit Price incl. VAT
31
PICKUP SCAVENGE
2521480
£54,41 Unit Price incl. VAT
32
WASHER
7556771
£10,60 Unit Price incl. VAT
33
GEAR OIL PUMP
5452831
£38,08 Unit Price incl. VAT
34
O-RING 3-908
5416365
£5,63 Unit Price incl. VAT
