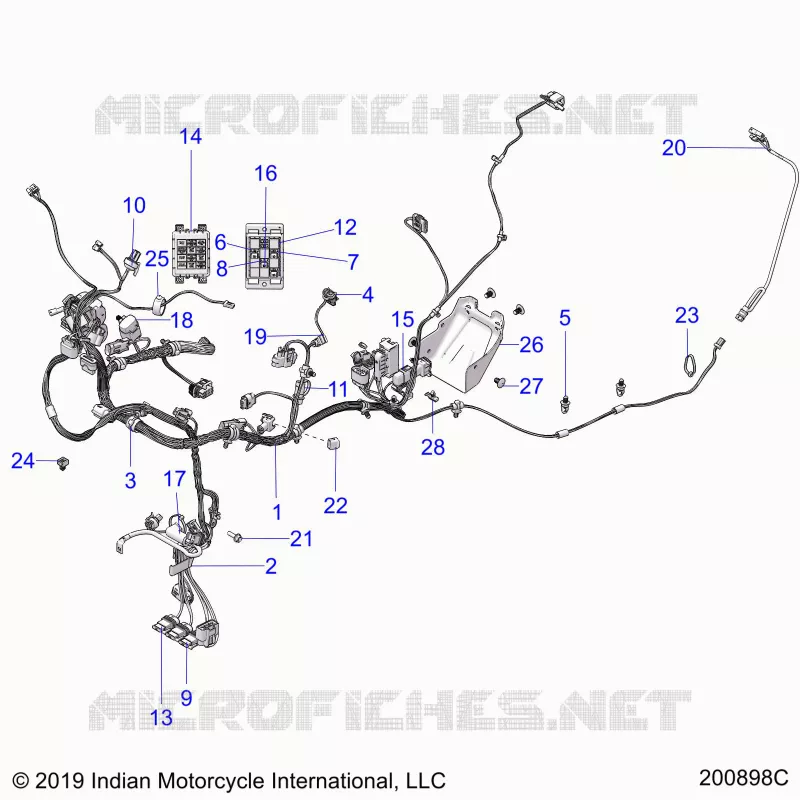

ELECTRICAL, WIRE HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
HARNESS-CHASSIS TRK
2414907
Not Available
2
RETAINER-WIRES POWER
5455666
Not Available
3
CABLE TIE-FIR TREE
7082003
£4,80 Unit Price incl. VAT
4
CLIP-RETAINER COIL
5455270
£24,48 Unit Price incl. VAT
5
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
6
FUSE IGNITION 10 AMP
2434016
£8,01 Unit Price incl. VAT
7
FUSE-7.5 MINI BLADE (BROWN)
4011068
£15,55 Unit Price incl. VAT
8
FUSE 5 AMP
4011652
£15,55 Unit Price incl. VAT
9
FUSE ATC 40A
4012421
£41,89 Unit Price incl. VAT
10
CONNECTOR-16 PIN MP100W
4013048
£53,86 Unit Price incl. VAT
11
COVER-CONNECTOR SAE
4015736
£6,41 Unit Price incl. VAT
12
RELAY-SPST 12V 20A SEALED HFA
4016186
£41,89 Unit Price incl. VAT
13
FUSE-ATC 25 AMP
4016618
£15,55 Unit Price incl. VAT
14
COVER-FUSEBOX TRK
4017718
Not Available
15
COVER-TYCO 4P
4018135
£8,26 Unit Price incl. VAT
16
BREAKER CIRCUIT 10 AMP
4011371
£23,93 Unit Price incl. VAT
17
BOOT-BATTERY CABLE RED POS
5411570
£7,51 Unit Price incl. VAT
18
COVER DIAGNOSTIC W/CLIP
4012170
£12,40 Unit Price incl. VAT
19
CLIP-EDGE 1-3MM THICKNESS
7082428
£5,63 Unit Price incl. VAT
20
HARNESS-REAR TRK
2414908
£76,56 Unit Price incl. VAT
21
SCREW
7520122
£5,63 Unit Price incl. VAT
22
COVER- BOSCH 2P F
4018461
£12,40 Unit Price incl. VAT
23
PANDUIT STRAP
7080138
£2,37 Unit Price incl. VAT
24
CLIP-CONNECTOR GREY
4018311
£4,37 Unit Price incl. VAT
25
CLAMP-RUBBER 84MM
5416885
£5,46 Unit Price incl. VAT
26
COVER-WIRING ABS
5455667
Not Available
27
CLIP DART
7670088
£2,18 Unit Price incl. VAT
28
CLIP-CONNECTOR 6.35MM HOLE
7082134
£5,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
