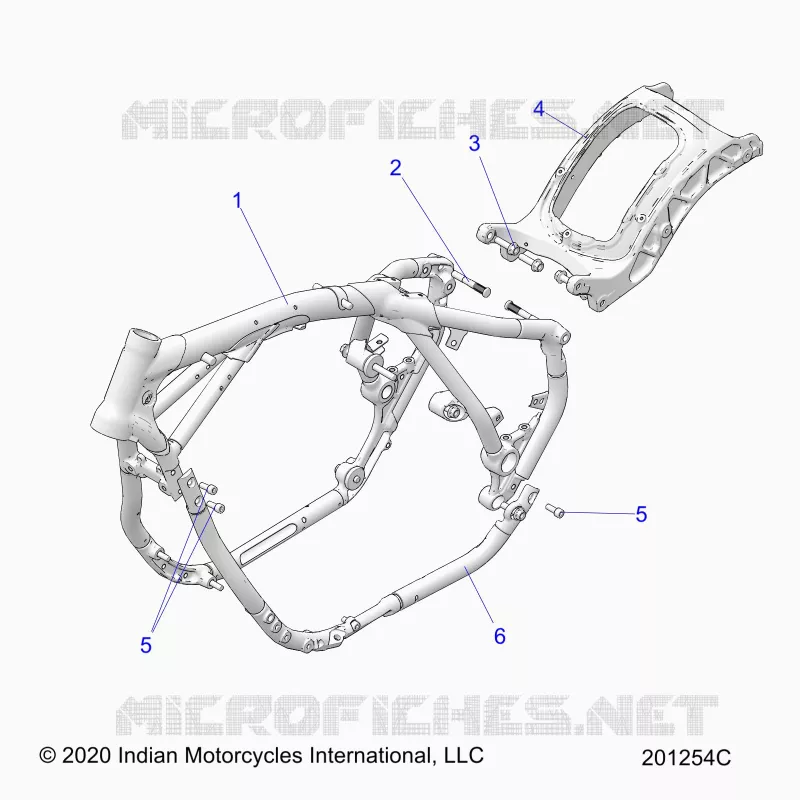

CHASSIS, FRAME ASM.
1
2
3
4
5
5
6
1
WELD-MAIN FRAME BLK
1025348-266
£3 115,83 Unit Price incl. VAT
2
STUD-M12X1.25X85 10.9
7521305
£5,63 Unit Price incl. VAT
3
SCREW HXFLG
7518878
£5,63 Unit Price incl. VAT
4
FRAME-SUBFRAME ECOAT
5143075-329
£696,82 Unit Price incl. VAT
5
SCR-SH-M10X1.5X25 CL-10.9 ZPB
7527932
£5,63 Unit Price incl. VAT
6
WELD-LH CRADLE BLK
1025349-266
£340,15 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
