1
Engine displacement
1800
2
Year
2016
3
Trim
chief-dark-horse
4
Parts Catalog
REAR SUSPENSION ASM., SWING ARM AND SHOCK
5
Parts Diagram
Parts Catalog
by
SEAT

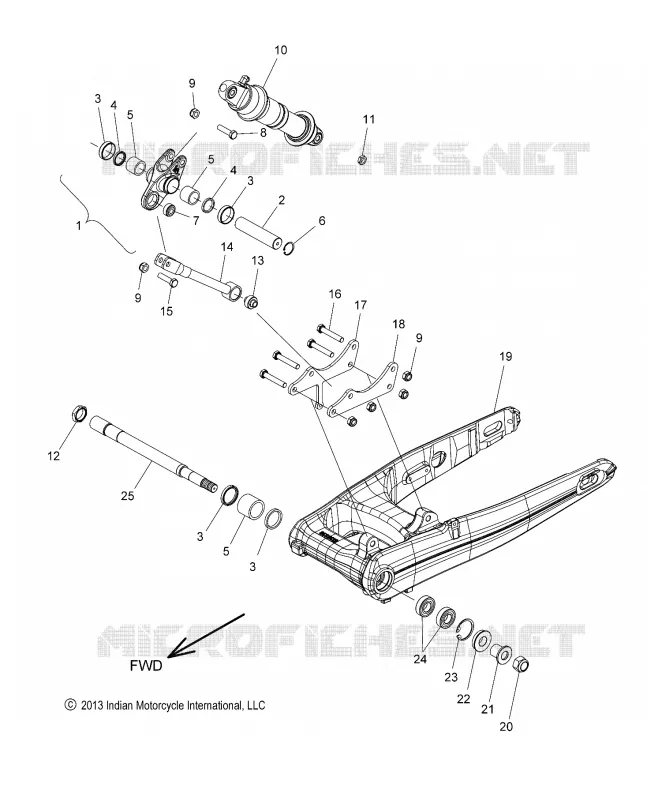

REAR SUSPENSION ASM., SWING ARM AND SHOCK
1
2
3
3
3
3
4
4
5
5
5
6
7
8
9
9
9
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
ASM. ROCKER {INCL. 3-5 7]
1019402
£294,96 Unit Price incl. VAT
2
PIVOT ROCKER
5138483
£54,41 Unit Price incl. VAT
3
SEAL
3610096
£12,24 Unit Price incl. VAT
4
BEARING THRUST
3514836
£4,37 Unit Price incl. VAT
5
BEARING NEEDLE ROLLER
3514544
£24,48 Unit Price incl. VAT
6
RING RETAINING
7710509
£10,60 Unit Price incl. VAT
7
BEARING ROCKER
3514796
£64,63 Unit Price incl. VAT
8
SCREW
7519902
£10,60 Unit Price incl. VAT
9
NUT
7547746
£3,27 Unit Price incl. VAT
10
SPROCKET [SEE DRIVETRAIN SPROCKETS GUARDS AND BELT PG.]
-------
Not Available
12
NUT JAM
7547693
£10,60 Unit Price incl. VAT
13
BEARING SPHERICAL
3514918
£36,72 Unit Price incl. VAT
14
ASM. PUSHROD
1019378-329
Not Available
15
SCREW
7519994
£24,48 Unit Price incl. VAT
16
SCREW
7520325
£5,63 Unit Price incl. VAT
17
PLATE GUSSET SWINGARM RH
5257941
Not Available
18
PLATE GUSSET SWINGARM LH
5257205
£47,87 Unit Price incl. VAT
19
SWING ARM JT BLACK
5138338-626
5139825-626
£1 010,40 Unit Price incl. VAT
20
NUT NYLOK
7547685
£10,60 Unit Price incl. VAT
21
SPACER PIVOT OUTER LH
5138622
£24,48 Unit Price incl. VAT
22
SPACER PIVOT LH
5138419
£20,40 Unit Price incl. VAT
23
RING RETAINING INTERNAL
7670149
£8,45 Unit Price incl. VAT
24
BEARING BALL
3514414
£15,56 Unit Price incl. VAT
25
PIVOT SUSPENSION
5138420
£141,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
