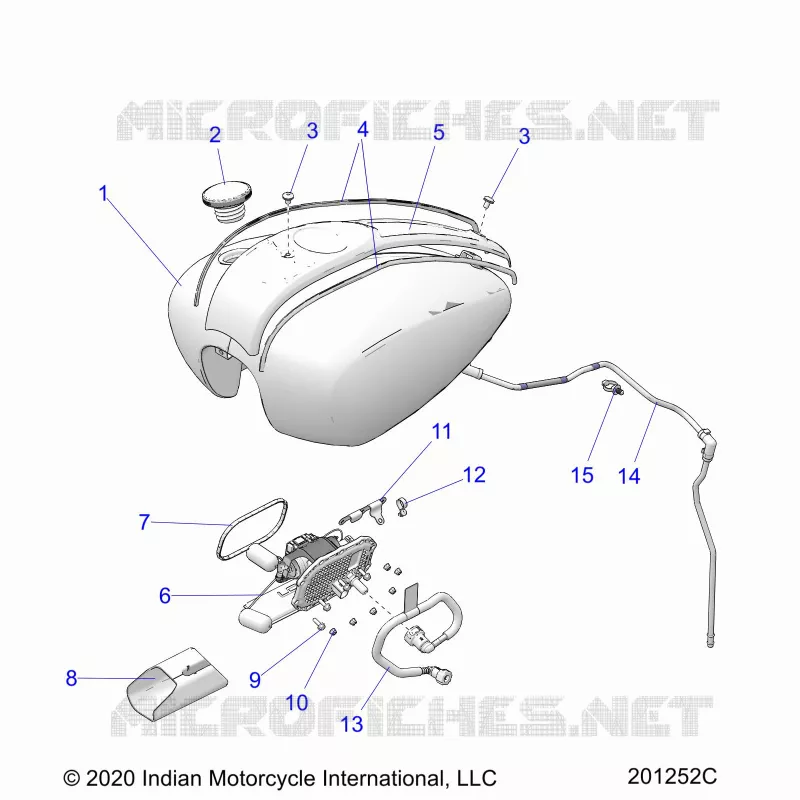

FUEL SYSTEM, FUEL TANK ASM.
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
1
ASM-TANK FUEL CSR SMKWHT WHITE SMOKE
1026492-675
£2 209,95 Unit Price incl. VAT
1
ASM-TANK FUEL ONYX BLK BLACK ONYX
1026492-800
£1 747,05 Unit Price incl. VAT
1
ASM-TANK FUEL RUBYSMK RUBY SMOKE
1026492-760
£2 209,95 Unit Price incl. VAT
2
CAP FUEL CHROME
2522214-156
£125,59 Unit Price incl. VAT
3
SCR-HXBH-M6X1.0X12-W/WASHER
7527851
£5,63 Unit Price incl. VAT
4
TRIM-EDGE CONSOLE 665MM
8360196
£53,86 Unit Price incl. VAT
5
CONSOLE-TANK STAMP CSR BLK
5268572-626
£319,22 Unit Price incl. VAT
6
PUMP-FUEL CSR
2522501
£366,32 Unit Price incl. VAT
6
PANDUIT STRAP
7080138
£2,37 Unit Price incl. VAT
7
SEAL FUEL PFA
5414830
£36,72 Unit Price incl. VAT
8
BAFFLE-PICKUP FUEL
5417716
£47,87 Unit Price incl. VAT
9
SCREW-HXFL-M5X0.80X16 8.8 ZY3
7521169
£4,37 Unit Price incl. VAT
10
NUT-HXFL-M5X0.8 8 ZPC NYL
7547829
£4,37 Unit Price incl. VAT
11
BRKT-RETENTION FUEL LINE ECOAT
5269412-329
£24,48 Unit Price incl. VAT
12
Strap Retainer Dart
7081461
Not Available
13
LINE-FUEL CSR
8450224
£125,59 Unit Price incl. VAT
14
LINE-VENT TANK [49 STATE]
5456336
£109,37 Unit Price incl. VAT
15
CLIP-ROUTING
7081496
£5,63 Unit Price incl. VAT
