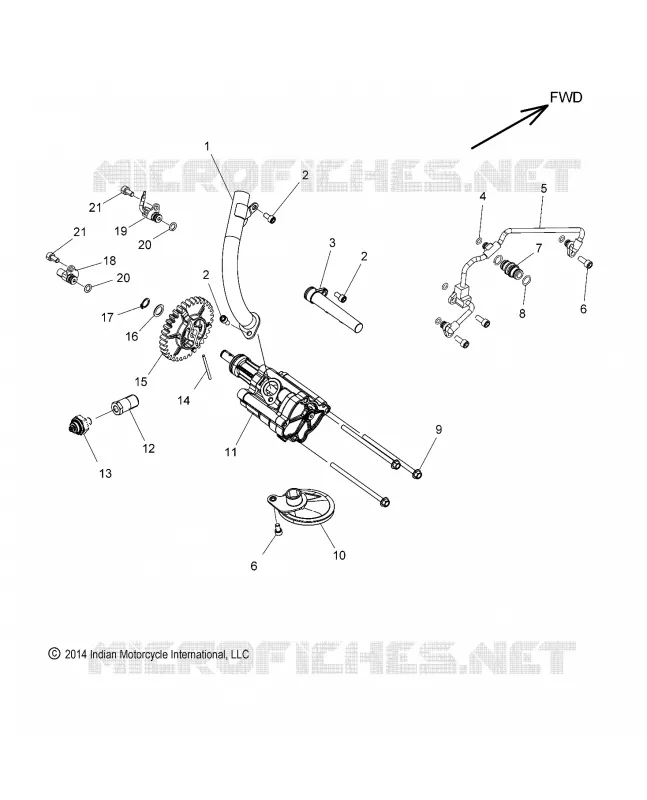

OIL PUMP/OIL SYSTEM
1
2
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
4
4
21
21
1
TUBE OIL SCAVENGE
2521284
£103,90 Unit Price incl. VAT
2
SCREW
7517739
£9,79 Unit Price incl. VAT
3
SCREEN OIL INLET SCAVENGE
2521285
£54,41 Unit Price incl. VAT
3
O-RING -017
5414596
£2,73 Unit Price incl. VAT
5
PIPE OIL FEED
2521318
£109,42 Unit Price incl. VAT
6
SCREW
7517272
£8,45 Unit Price incl. VAT
7
COUPLER OIL FEED CAM COVER
2521320
£35,90 Unit Price incl. VAT
8
O-RING
5412027
£2,73 Unit Price incl. VAT
9
SCREW
7517256
£10,60 Unit Price incl. VAT
10
SCREEN OIL INLET PICKUP
2521454
£54,41 Unit Price incl. VAT
11
ASM OIL PUMP
1205045
£439,59 Unit Price incl. VAT
12
FITTING
5140352
£41,01 Unit Price incl. VAT
13
PISTON
*******
Not Available
14
PIN DOWEL
7662123
£24,48 Unit Price incl. VAT
15
GEAR OIL PUMP DRIVE
2521477
£43,52 Unit Price incl. VAT
16
WASHER
7555977
£8,45 Unit Price incl. VAT
17
RING RETAINING
7710645
£1,63 Unit Price incl. VAT
18
NOZZLE PISTON COOLING REAR
2521317
£54,41 Unit Price incl. VAT
19
NOZZLE PISTON COOLING FRONT
2521316
£156,99 Unit Price incl. VAT
20
O-RING
5414595
£2,73 Unit Price incl. VAT
21
SCREW
7517847
£4,37 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
