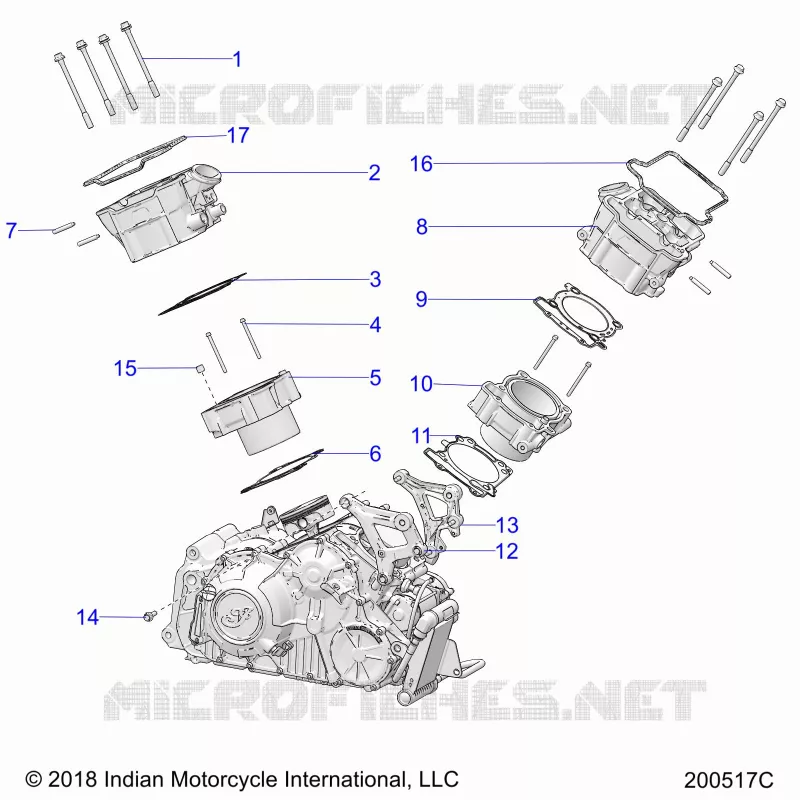

ENGINE, CYLINDER AND CYLINDER HEAD MNTG.

SCR-HXFL-M11X1.25X150 SAE4037

7520144

£13,87 Unit Price incl. VAT

ASM-CYL HEAD REAR MACH IND TNM [INCL. 11 13 17 33]

3023618-650

Not Available

GASKET-CYL HEAD REAR

5814609

£52,20 Unit Price incl. VAT

SCREW

7520115

£8,45 Unit Price incl. VAT

ASM-CYL REAR IND 102MM TNM

3023338-650

Not Available

GASKET BASE REAR

5813952

£32,64 Unit Price incl. VAT

STUD-M8X1.25X45 SOCKET 8.8

7520858

£5,46 Unit Price incl. VAT

ASM-CYL HEAD FRONT MACH IND TNM [INCL. 11 13 17 33]

3023617-650

Not Available

GASKET-CYL HEAD FRT

5814608

£52,20 Unit Price incl. VAT

ASM-CYL FRT IND 102MM TNM

3023337-650

3024081-650

£366,32 Unit Price incl. VAT

GASKET BASE FRONT

5813879

£32,64 Unit Price incl. VAT

BRACKET-HEADMOUNT RH TXT TITN (FROM 1/7/2022)

5144774-650

£74,92 Unit Price incl. VAT

BRACKET-HEADMOUNT RH TXT TITN (TO 1/7/2022)

5142161-650

Not Available

BRACKET-HEADMOUNT LH TXT TITN (TO 3/15/2022)

5142160-650

Not Available

BRACKET-HEADMOUNT LH TXT TITN (FROM 3/15/2022)

5144773-650

£74,92 Unit Price incl. VAT

SCR-HXFL-M8X1.25X30 10.9 ZPB

7518884

£2,73 Unit Price incl. VAT

DWL-HOLLOW M14X12MM

7662163

£32,64 Unit Price incl. VAT

SEAL-VALVE COVER FRT

5416583

£41,01 Unit Price incl. VAT

SEAL-VALVE COVER REAR

5416584

£41,01 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

FTR 1200 1200 2020

View
